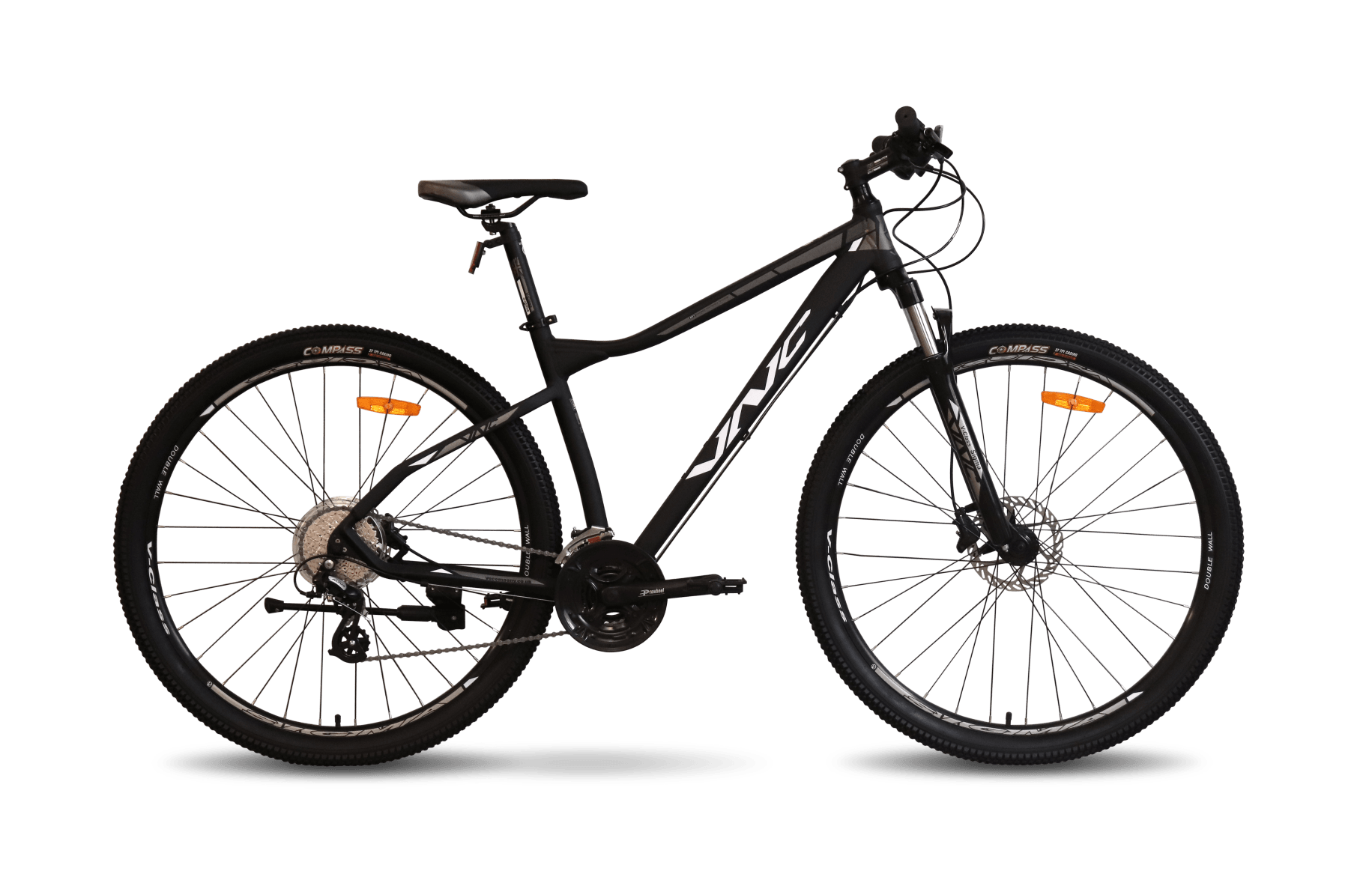

Rider A5 FMN

Rider A5 FMN

  • Strong and lightweight feminine concept alloy frame with lowered top center tube
  • Durable and lightweight V-Class Zeta Sigma HLO alloy suspension fork with hydraulic lockout
  • Hydraulic Disc Brakes with Aluminum Handlebars
  • Shimano Altus 8 speed rear derailleur and 3 speed front derailleur with Shimano Acera shifters
  • Cassette Skilful CS-M220 11-32T, 8 Speed
  • 27,5" wheels size

Description

The VNC Rider A5 FMN mountain bike is built with a light and durable aluminum frame that is resistant to corrosion and moisture. The upper tube of the profile has a significant smooth slope and forms an underestimated geometry for ease of landing, comfortable pedaling and easy jumping off the bike.


The shock-absorbing lightweight, reliable V-Class Zeta Sigma HLO fork with hydraulic lockout is made of aluminum, which works out bumps and difficult sections of the road surface.


The best Logan hydraulic disc brakes have the most powerful stopping power. With the slightest effort on the aluminum handlebars on the handlebars with a connected hydraulic line, the brake pads securely grip the front and rear wheel rotors.


The bike is equipped with a reliable 24-speed drivetrain (3x8) powered by Shimano Altus proprietary components, allowing the rider to tackle the road in any terrain. Shimano Altus monoblock shifters shift smoothly and precisely to desired gears.


The high performance 8-speed Skilful CS-M220 11-32T cassette has a powerful motor life.


The wheel radius of 27,5'' is optimal for acceleration, speed modes and braking.


The seat tube adjustment allows the cyclist to find the correct ride height for comfortable travel over any distance.

Specification

Frame VNC MTB ProLite FMN, alloy
Fork V-Class Zeta HLO, 100mm, alloy
Shifters Shimano Acera SL-M315, 3x8 speed
Front derailleur Skilful FD-M200, 3 speed
Rear derailleur Shimano Altus RD-M310, 8 speed
Cassette Skilful CS-M220-8, 11-32t
Crankset V-Class Zeta, 24T/34T/42T, alloy
Chain KMC Z8.3
Bottom bracket Sealed cartridge, BSA
Brakes Logan, hydraulic disc brake, rotor: 160/160 mm
Brake Levers Logan, hydraulic
Hub (front) V-Class Sigma, disk, quick release. alloy
Hub (rear) V-Class Sigma, disk, quick release. alloy
Handlebars V-Class Sigma, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma, disc, double wall, alloy
Spokes Stainless Steel
Tires Compass MTB, 27,5"x2.30"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,6
Color Black / Purple / White
Frame size S7 / M7

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS6 S7 M7 L9 XL9
A bb center to top of seattube 360 410 450 470 510
B top tube parallel 537 562 584 579 593
B* top tube horizontal 541 586 610 605 620
C chainstay 424 435 435 455 455
D headtube length 110 110 110 110 110
E head angle 68,5 ° 70 ° 70 ° 71 ° 71 °
F seat angle 74,5 ° 73 ° 73 ° 73 ° 73 °
H bb offset 45 42 42 75 75
K wheelbase 1065 1083 1107 1116 1131
G seatpost diameter 30,4 30,4 30,4 30,4 30,4
