Rider A5

Rider A5

  • Strong and lightweight alloy frame with lowered top center tube
  • Durable and lightweight V-Class Sigma alloy suspension fork
  • Hydraulic Disc Brakes with Aluminum Handlebars
  • Shimano Altus 8 speed rear derailleur and 3 speed front derailleur with Shimano Acera shifters
  • Cassette Skilful CS-M220 11-32T, 8 Speed
  • 27,5" / 29" wheels size

Description

The VNC Rider A5 mountain bike is engineered with a sporty aluminum frame that is the optimal solution for its high strength, light weight, corrosion and moisture resistance. Smoothly lowered center, upper profile tube forms a narrow lumen triangle for comfortable pedaling, easy landing and jumping off the bike.


The lightweight and durable V-Class Zeta City HLO aluminum suspension fork with hydraulic lockout responds to bumps in the road and allows easy riding on rough terrain.


Logan's best-in-class hydraulic disc brakes with aluminum handlebar grips provide the most powerful stopping power and respond to the smallest force with a connected brake hose.


The bike's 24-speed (3x8) drivetrain is equipped with Shimano Altus gear components, which provides the rider with tremendous options for both high-speed and low-speed modes. Shimano Altus monoblock shifters provide smooth, precise shifting.


The Skilful CS-M220 11-32T 8-speed cassette has high performance and increased service life.


The 27,5'' and 29" wheel size is optimal for high speed conditions and softer passing of the road with variable character.


The height-adjustable seat tube allows the rider to choose the most comfortable position for a relaxed pedaling.

Specification

Frame VNC MTB ProLite, alloy
Fork V-Class Sigma, 100mm, alloy
Shifters Shimano Acera SL-M315, 3x8 speed
Front derailleur Skilful FD-M200, 3 speed
Rear derailleur Shimano Altus RD-M310, 8 speed
Cassette Skilful CS-M220-8, 11-32t
Crankset V-Class Zeta, 24T/34T/42T, alloy
Chain KMC Z8.3
Bottom bracket Sealed cartridge, BSA
Brakes Logan, hydraulic disc brake, rotor: 160/160 mm
Brake Levers Logan, hydraulic
Hub (front) V-Class Sigma, disk, quick release. alloy
Hub (rear) V-Class Sigma, disk, quick release. alloy
Handlebars V-Class Sigma, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma, disc, double wall, alloy
Spokes Stainless Steel
Tires Compass MTB, 27,5"(29")x2.30"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,6
Color Black / Grey / White
Frame size S7 / M7 / L9 / XL9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

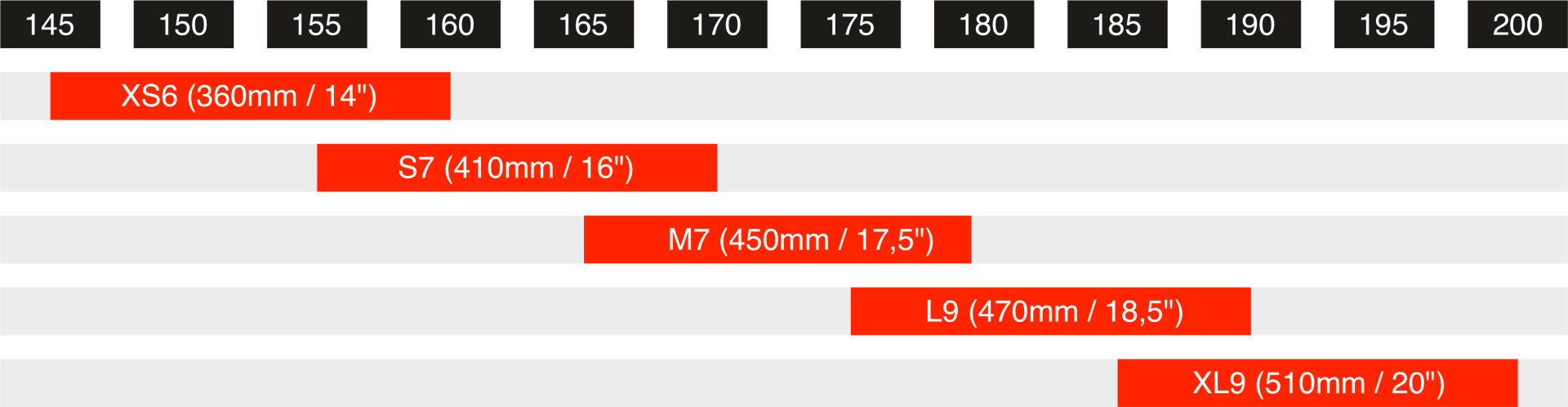

Size chart

Geometry

XS6 S7 M7 L9 XL9
A bb center to top of seattube 360 410 450 470 510
B top tube parallel 537 562 584 579 593
B* top tube horizontal 541 586 610 605 620
C chainstay 424 435 435 455 455
D headtube length 110 110 110 110 110
E head angle 68,5 ° 70 ° 70 ° 71 ° 71 °
F seat angle 74,5 ° 73 ° 73 ° 73 ° 73 °
H bb offset 45 42 42 75 75
K wheelbase 1065 1083 1107 1116 1131
G seatpost diameter 30,4 30,4 30,4 30,4 30,4
