MontRider A11
- Strong and lightweight alloy frame
- Alloy air suspension fork with hydraulic lock-out with remote lock
- Hydraulic disc brakes with alloy levers
- 1x12 speed reliable drive train
- Index cassette, 11-50T
Description

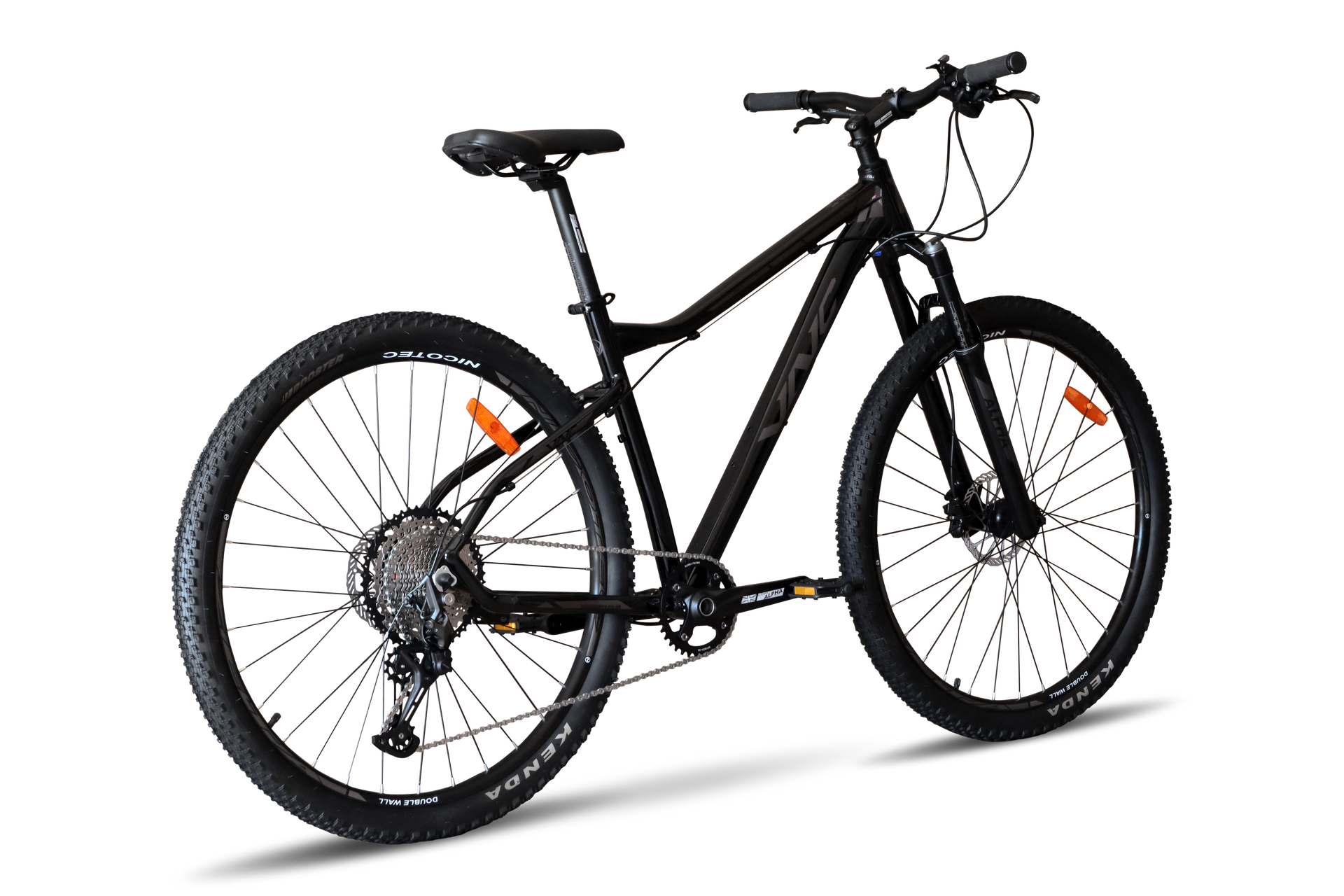

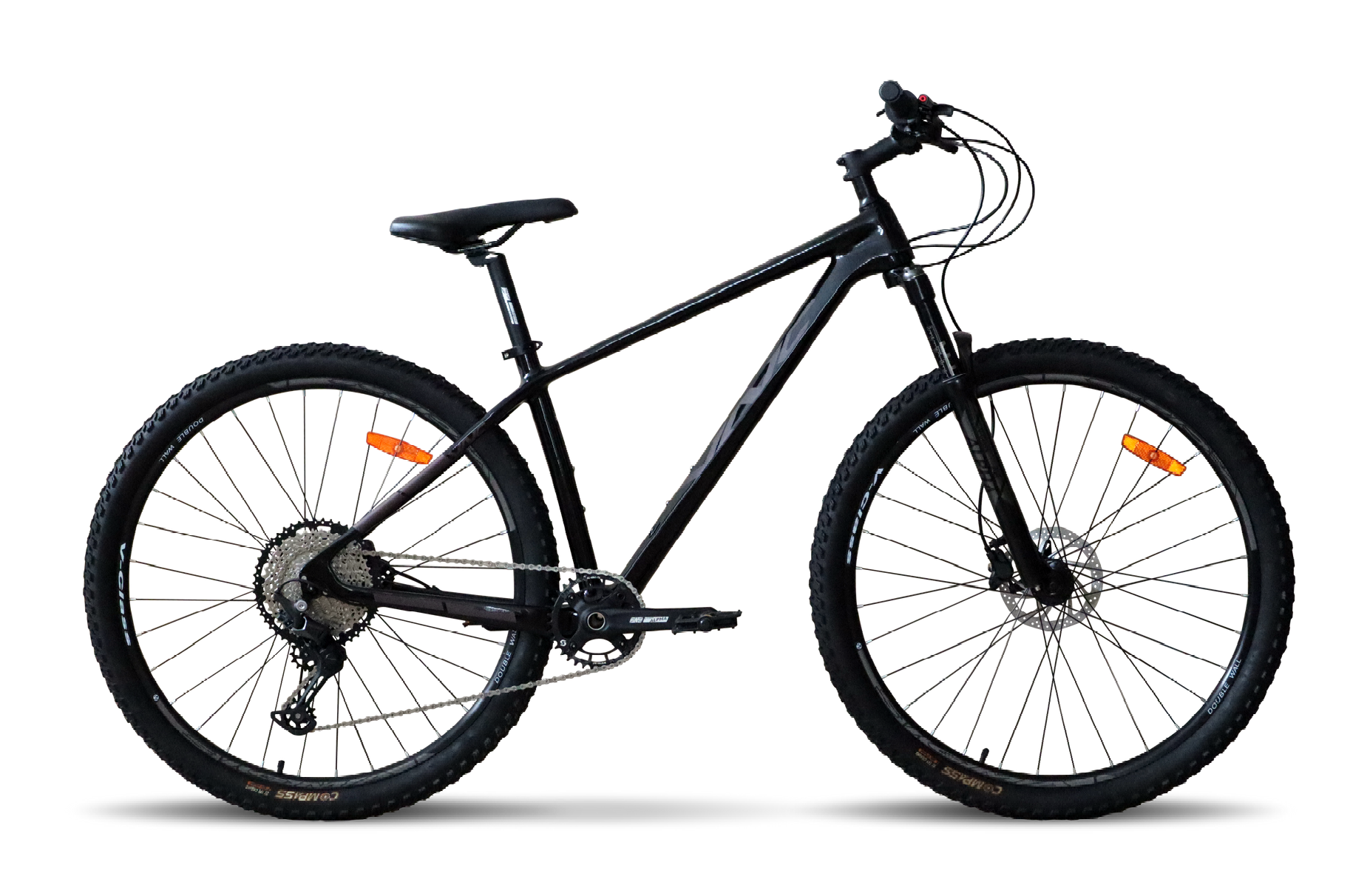

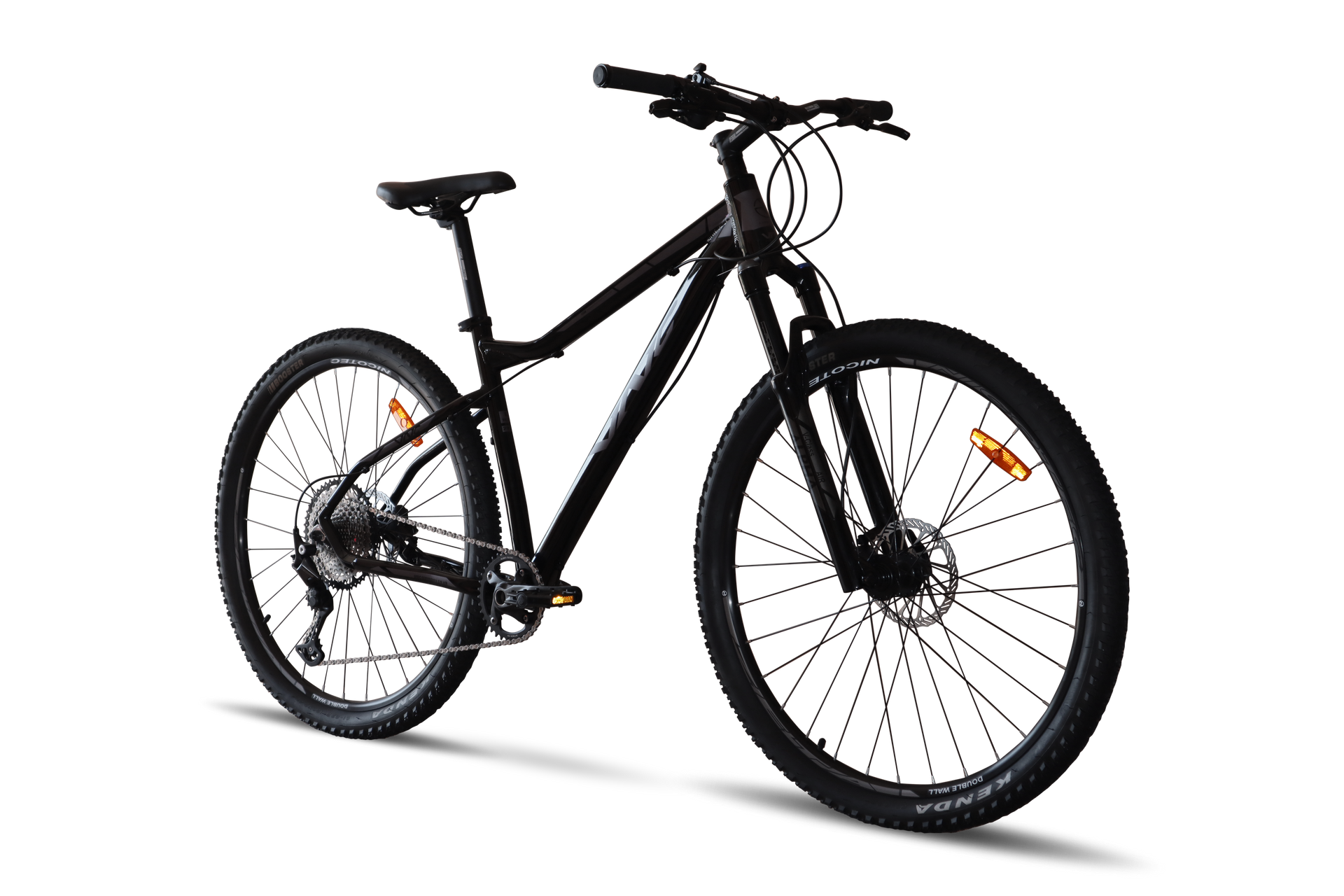

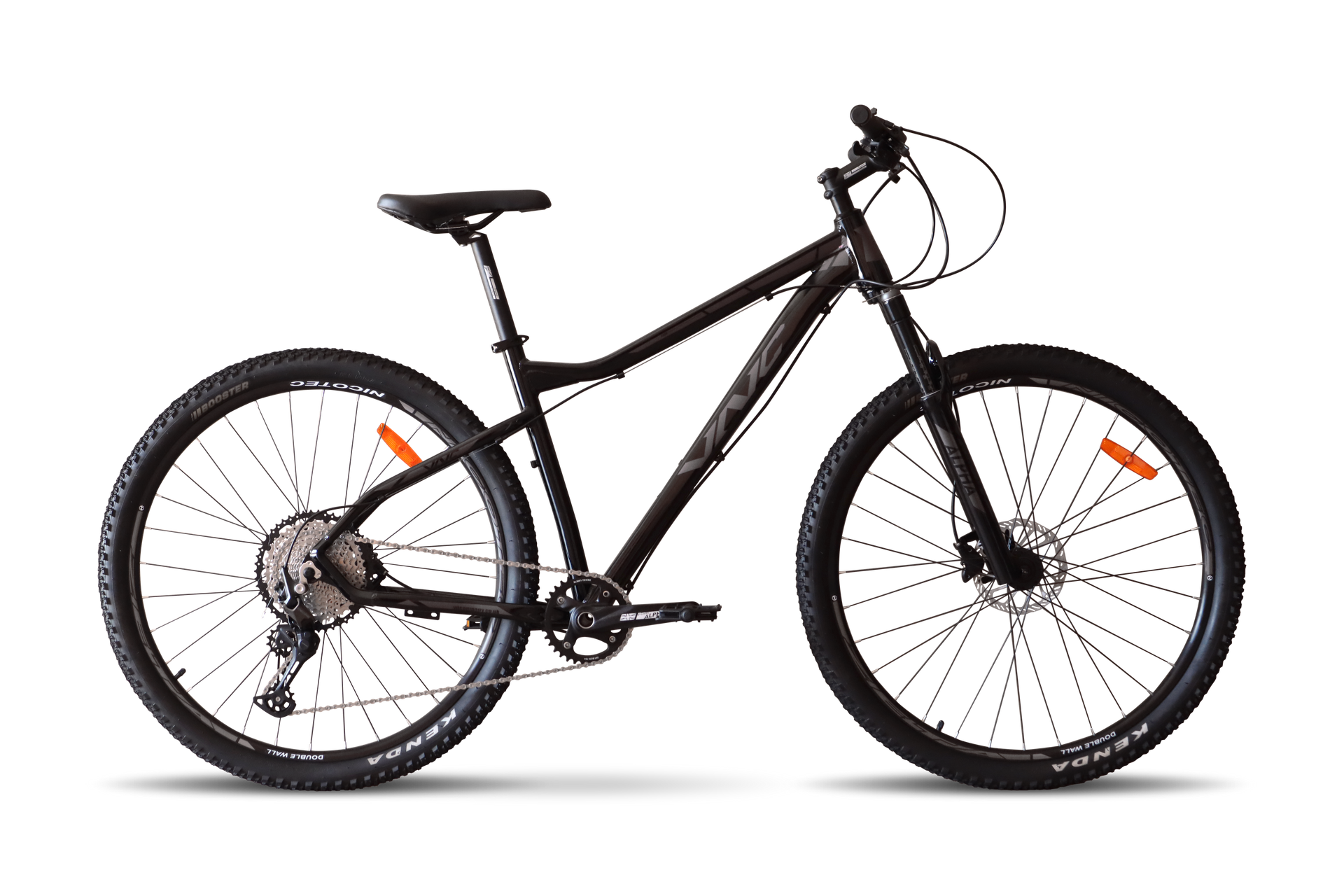

VNC MontRider A11 is a mountain bike built around a lightweight yet durable aluminum frame that is resistant to moisture and corrosion. The sloped top tube creates a low-profile geometry with a compact rear triangle, making mounting, dismounting, and quick exits from the bike easier and more comfortable.
The bike is equipped with a V-Class Alpha HLO-RL alloy air suspension fork featuring a hydraulic lockout with remote control. This fork effectively absorbs impacts and vibrations, providing confident handling on uneven roads and rough terrain.
Reliable Shimano MT200 hydraulic disc brakes deliver immediate and powerful stopping performance. When the brake levers are applied, the pads quickly clamp onto the front and rear rotors, ensuring precise control and safety in all riding conditions.
The drivetrain features a 1×12-speed configuration built with Shimano Deore components, offering a wide gear range for efficient riding across varied terrain. Depending on the bike specification, V-Class or Shimano shifters are mounted on the handlebars, providing smooth and accurate gear changes.
A 12-speed 11–50T cassette ensures strong performance, stable chain engagement, and reliable power transfer on both climbs and fast trail sections.
The bike rolls on 29-inch wheels, which deliver quick acceleration, excellent rolling efficiency, and stable speed maintenance.
The adjustable seat post height allows the rider to easily find a comfortable and efficient riding position.
All components are lightweight, high-quality, and sourced from leading global manufacturers. They are reliable, easy to maintain, and designed for long service life.
Specification
| Frame | MTB ProLite, alloy |
| Fork | V-Class Alpha AIR HLO-RL, hyd. lock-out, remote lock, 120mm, alloy |
| Shifters | Shimano SL-M6100-R, index, 1x12 speed |
| Front derailleur | N / A |
| Rear derailleur | Shimano Deore RD-M6100-SGS, index, 12 speed |
| Cassette | SunShine CS-HG12-50, cassette type, index, 11-50T |
| Crankset | V-Class Alpha, 36T, alloy |
| Chain | KMC X12 |
| Bottom bracket | Pressed B. B. |
| Brakes | Shimano MT200, hydraulic disc brake, rotor: 160/160 mm |
| Brake Levers | Shimano MT200, hydraulic disc brake, alloy |
| Hub (front) | V-Class Alpha, disk, bearings, quick release, alloy |
| Hub (rear) | V-Class Alpha, disk, bearings, quick release, alloy |
| Handlebar | V-Class Sigma, alloy |
| Stem | V-Class Sigma, alloy |
| Seatpost | V-Class Sigma, alloy |
| Saddle | V-Class MontRace |
| Headset | VNC M2, A-Headset, semi-integrated |
| Rims | V-Class Sigma, disc, double wall, alloy |
| Spokes | Stainless Steel Black |
| Tires | Kenda Booster, 29x2.40 |
| Pedals | V-Class FP-803, ball bearings |
| Grips | V-Class Pro MTB |
| Approx weight | 14.5 kg |
| Color | Black / Dark Grey |

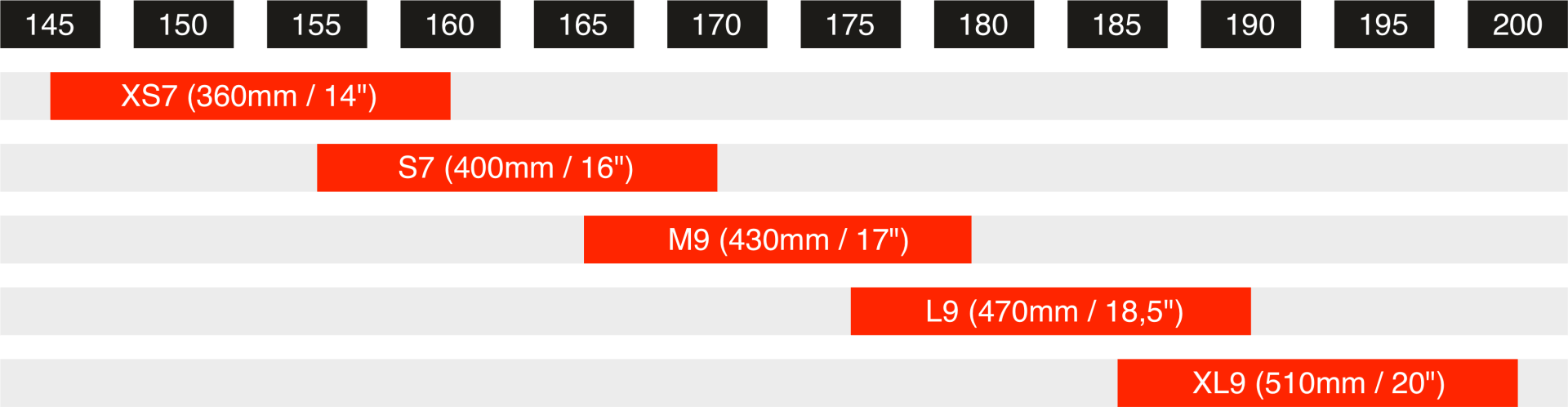

| Frame size | M9 / L9 / XL9 |
* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

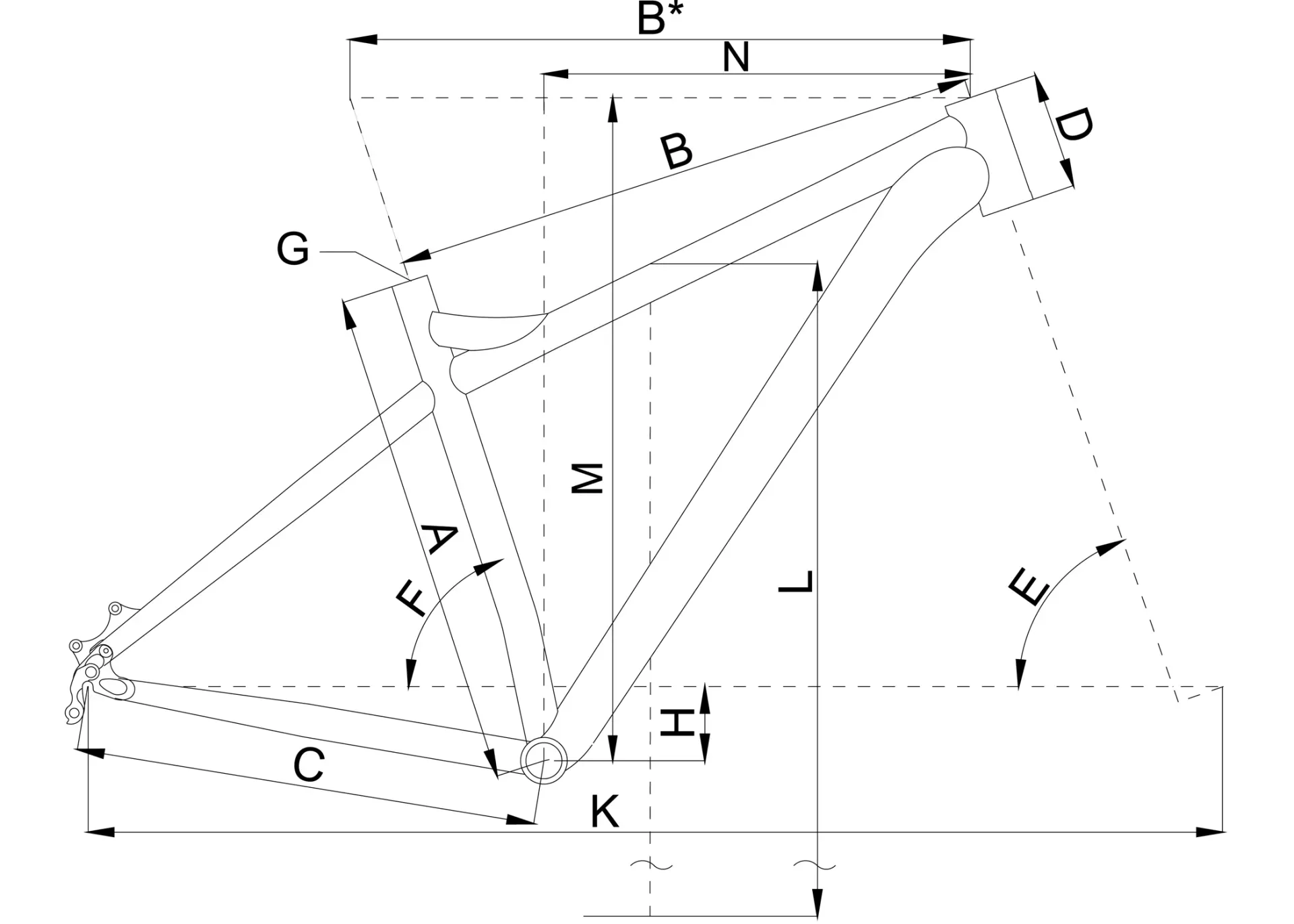

Geometry
| XS7 | S7 | M9 | L9 | XL9 | ||
|---|---|---|---|---|---|---|
| A | bb center to top of seattube | 360 | 400 | 430 | 470 | 510 |
| B | top tube parallel | 567,5 | 562,7 | 582 | 579,2 | 593,4 |
| B* | top tube horizontal | 451 | 586 | 605 | 610 | 620,1 |
| C | chainstay | 445 | 445 | 455 | 455 | 455 |
| D | headtube length | 110 | 110 | 110 | 110 | 110 |
| E | head angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| F | seat angle | 73 ° | 73 ° | 79 ° | 79 ° | 78,5 ° |
| H | bb offset | 42 | 42 | 75 | 75 | 75 |
| K | wheelbase | 1083 | 1086 | 1116 | 1119 | 1131 |
| G | seatpost diameter | 34,9 | 34,9 | 34,9 | 34,9 | 34,9 |
