Viper A2

Viper A2

  • Strong and durable steel frame
  • V-Class Delta steel suspension fork
  • V-Class Zeta mechanical disc brakes with alloy levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28T

Description

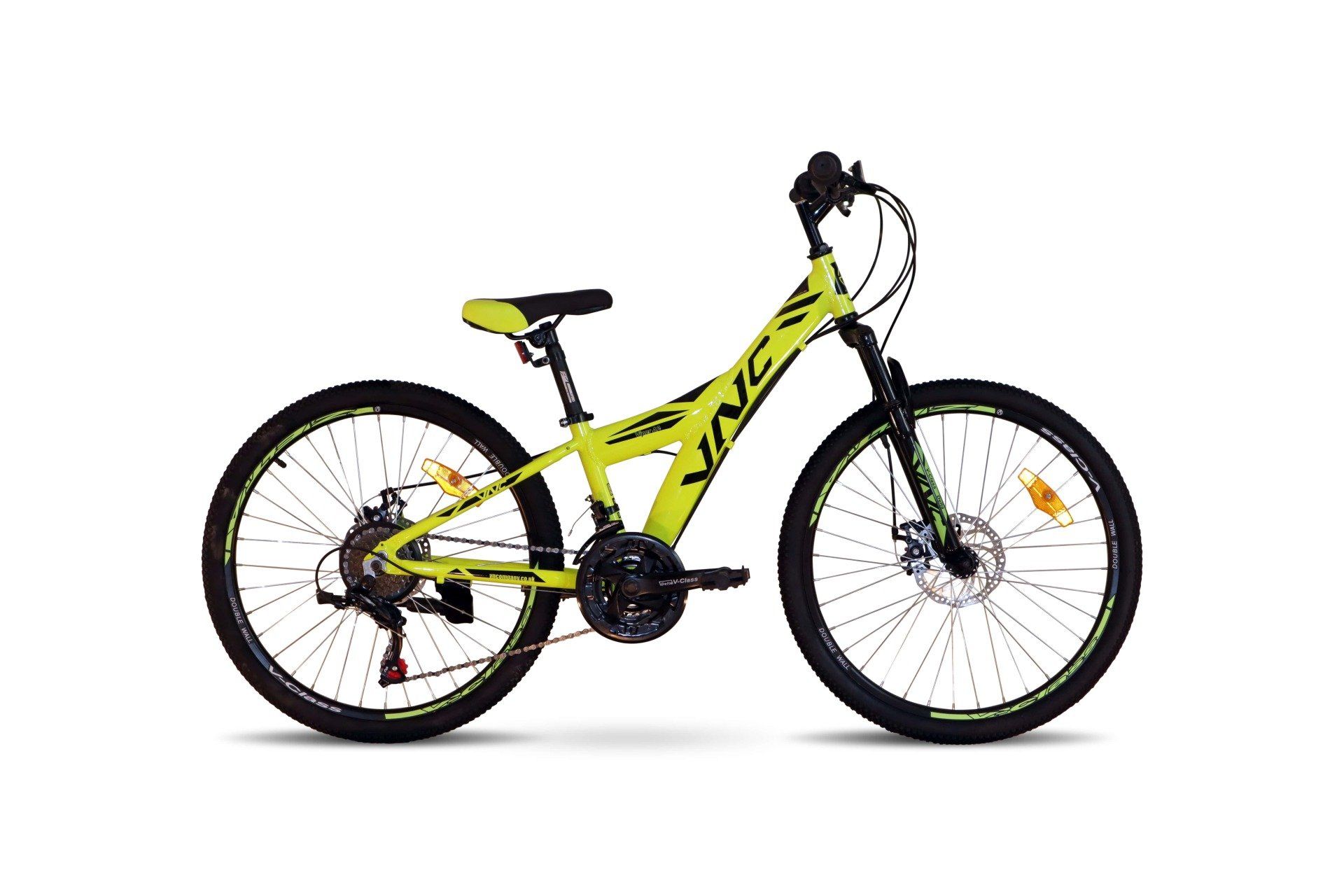

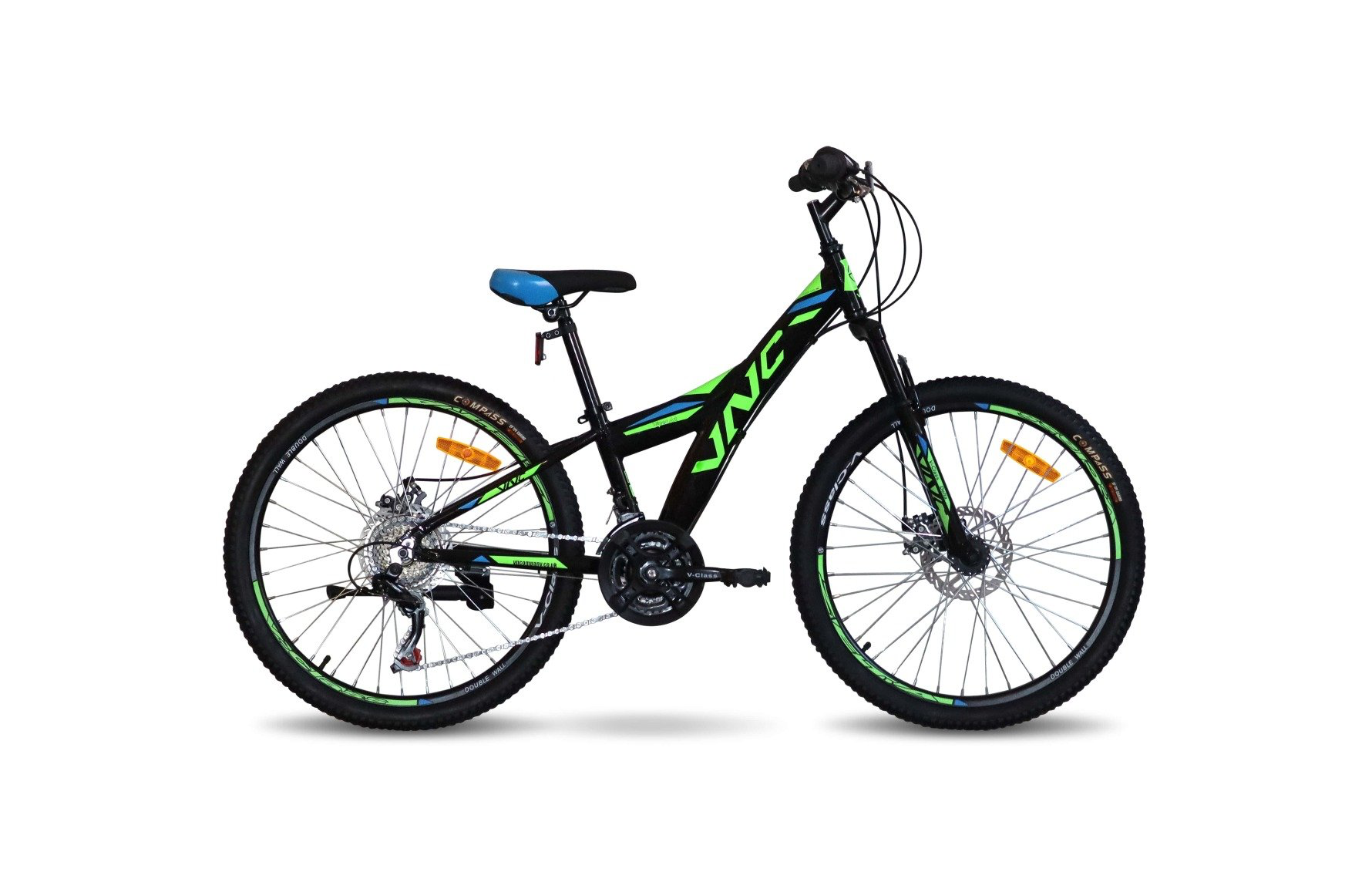

The VNC Viper A2 bike is designed for teenagers with a light and strong Y-shaped frame made of corrosion-resistant aluminum. The shape of the frame profile has a low geometry, convenient for landing and free jumping from the bike, which reduces the risk of hooks and injuries. Smooth, streamlined lines have a reliable margin of safety, evenly distributing the load.


Roughness of the road and difficult sections of the road are handled by a steel shock-absorbing fork V-Class Delta.


Powerful stopping force is provided by Logan mechanical disk brakes calipers, that clamping wheel rotors by special blocks. The disc mechanics are activated instantly when the brake levers on the handlebars of the bicycle are compressed.


The transmission of the bike has 21 speeds in a combination of 3x7, running on branded components Shimano Tourney, which allows you to overcome a variety of road conditions and obstacles. Shimano RevoShift shifters mounted on the handlebars are responsible for accurate gear shifting.


24'' inch wheels are optimal in acceleration, rolling and speed.


Saddle height adjustment helps to find a comfortable, level position for the cyclist.


High-quality, lightweight components are productive and do not require serious adjustments.

Specification

Frame MTB Y-Type Junior, alloy
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney RV200, index, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, index, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, index, 7 speed
Freewheel Tri Diamond FW-207, index, 13-28T
Crankset V-Class Delta Pro, 24T/34T/42T, steel
Chain JX C50
Bottom bracket Sealed cartridge, BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Delta Kids, steel
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace JR
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Steel
Tires Compass MTB, 24"x1.95"
Pedals V-Class FP-803, ball bearings
Grips V-Class Revo MTB
Approx weights in kg 12,1 (kick stand & mudguards not included)
Color Black / Blue / Green
Frame size Black / Blue / Green or Lime / Black

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

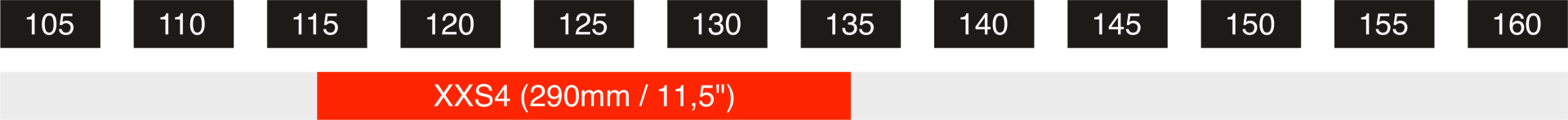

Size chart

Geometry

XXS4
A bb center to top of seattube 290
B top tube parallel 480
B* top tube horizontal 492
C chainstay 415
D headtube length 102
E head angle 71 °
F seat angle 73 °
H bb offset 25
K wheelbase 994
G seatpost diameter 31,8
