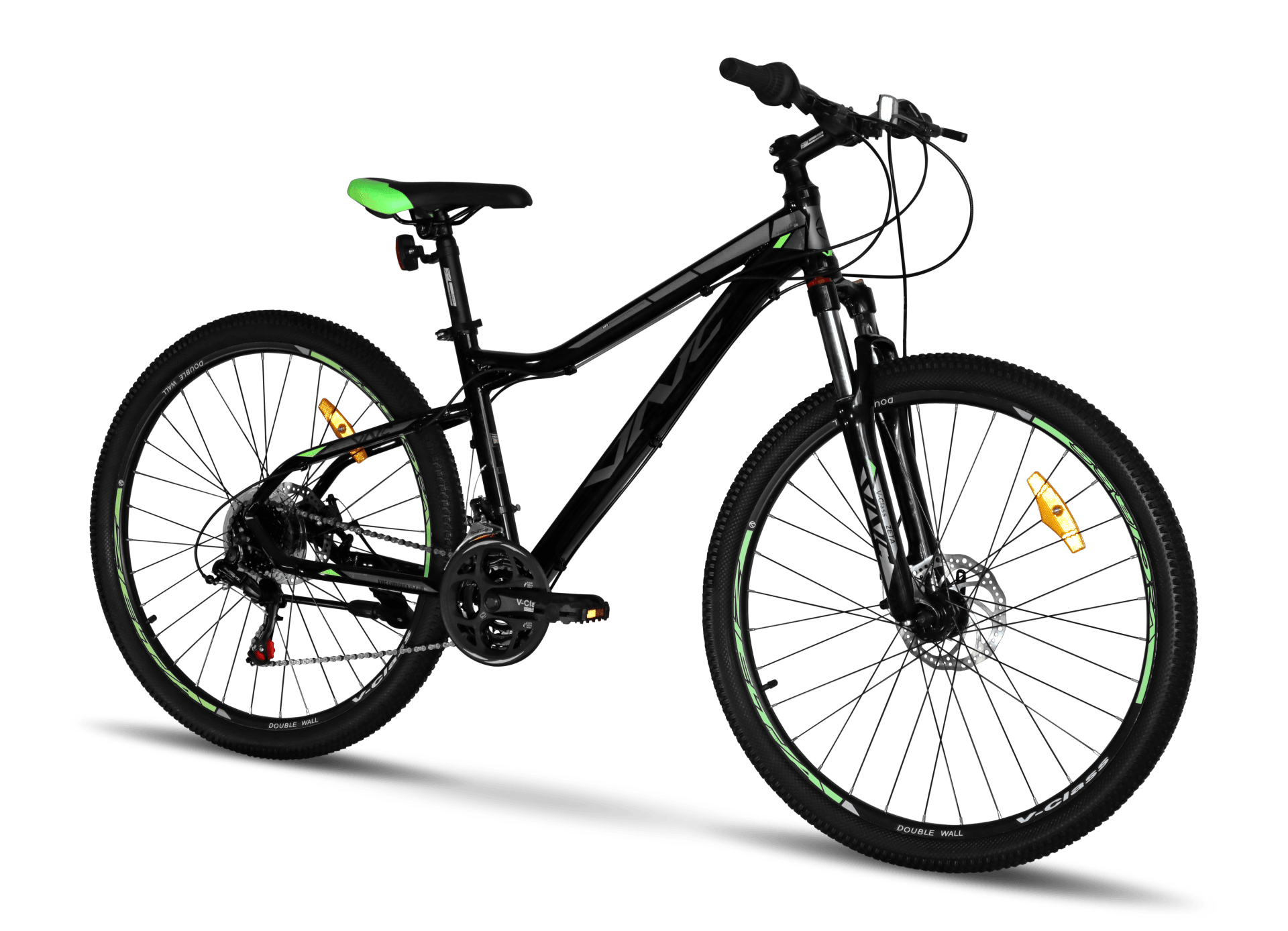

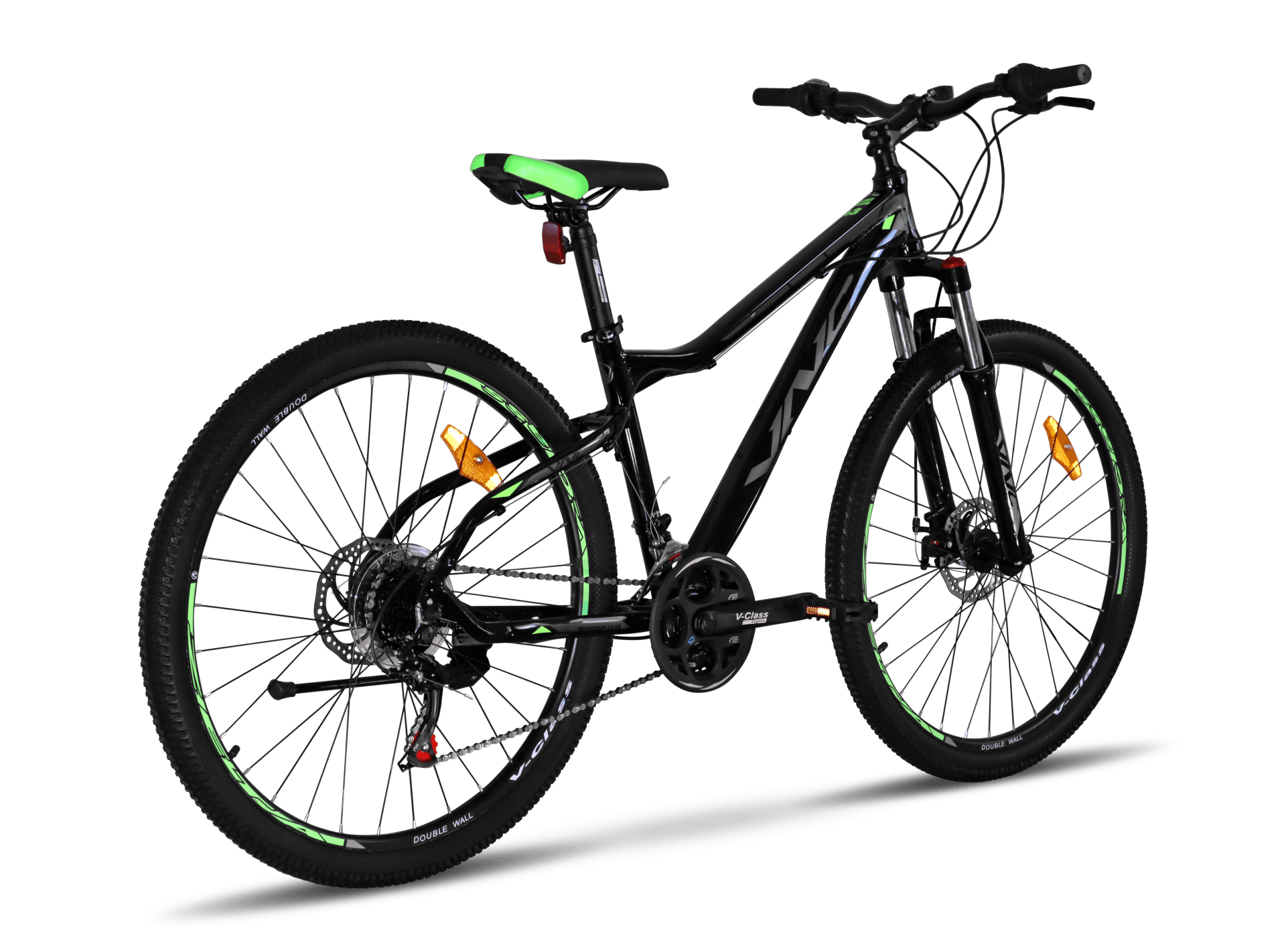

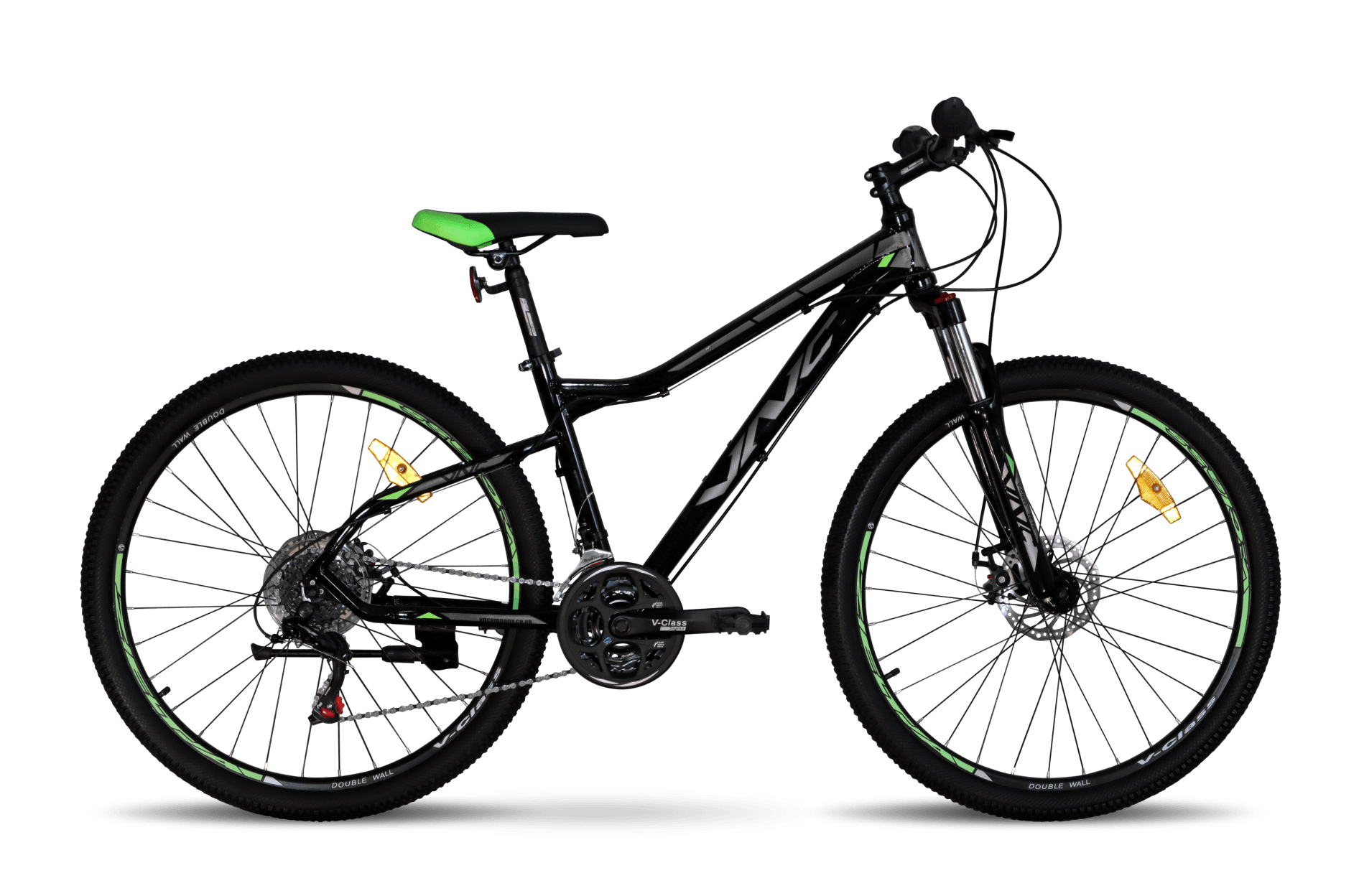

MontRider A3

MontRider A3

  • Strong and lightweight alloy frame
  • Alloy suspension fork with mechanical lock-out (optional)
  • V-Class Zeta mechanical disc brakes with alloy levers
  • 3x7 speed reliable drive train
  • Index cassette, 12-28T

Description

The VNC MontRider A3 mountain bike is made on the basis of a light and durable aluminum frame that is resistant to corrosion and moisture. The central, upper profile tube has a slope and forms a low geometry with a narrow lumen triangle for ease of landing and jumping off the bike.


The alloy V-Class Sigma MLO or (SR Suntour XCM) suspension fork handles uneven, uneven road sections, especially in rough terrain.


Immediate stopping power is provided by reliable V-Class Zeta mechanical disc brakes with aluminum handlebar grips, when compressed, the pads immediately grip the rotors of the front and rear wheels.


The dynamics of the bike is represented by a 21-speed transmission (3x7), equipped with proprietary Shimano Tourney components, which gives ample range for riding in a variety of terrain. Shimano RevoShift shifters are installed around the circumference of the handlebars and smoothly shift the desired speeds.


The 7-speed 12-28T cassette delivers high performance and easy chain throwing.


Wheels in the size of 27,5'' and 29'' inches perfectly accelerate, keep the roll and speed.


The seat post height adjustment allows the rider to find a comfortable position.


High-quality, lightweight components from the world's leading manufacturer are unpretentious in operation and have a long service life.

Specification

Frame MTB ProLite, alloy
Fork V-Class Sigma MLO, coil, mechanical lock-out, 100mm, alloy / SR Suntour XCM, 100mm, alloy
Shifters Shimano Tourney RV200, index, 3x7 speed
Front derailleur Shimano Tourney FD-TY300, index, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, index, 7 speed
Cassette Skilful FW-6207, cassette type, index, 12-28T
Crankset V-Class Sigma, 24T/34T/42T, alloy
Chain JX C50
Bottom bracket Sealed Cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebar V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Steel Black
Tires MTB Pro, 27,5’’(29’’)x2.35’’
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,8 (kick stand & mudguards not included)
Color Black / Green / Grey
Frame size XS7 / S7 / M9 / L9 / XL9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

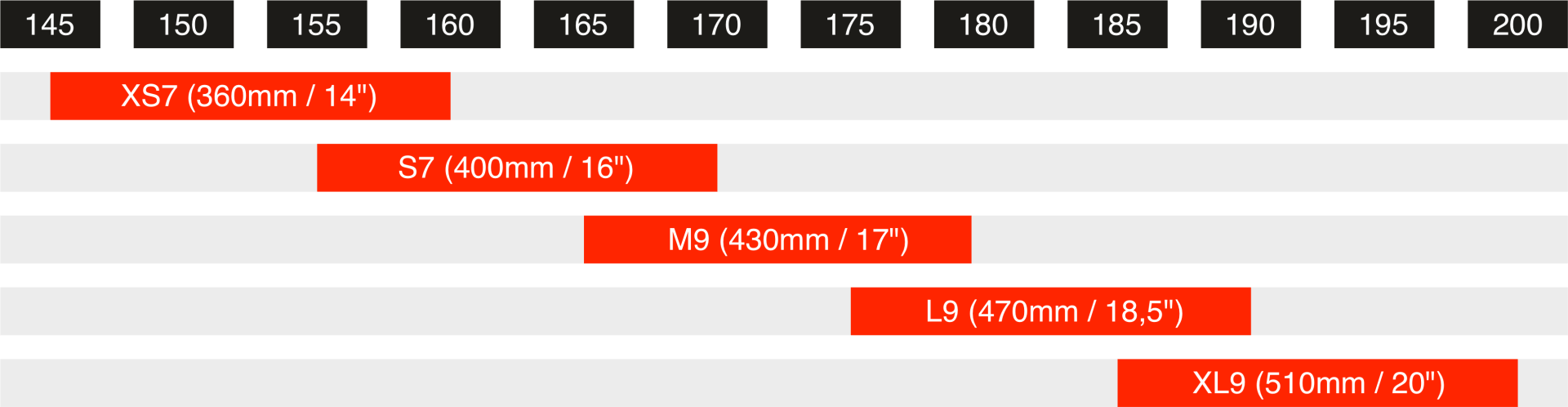

Size chart

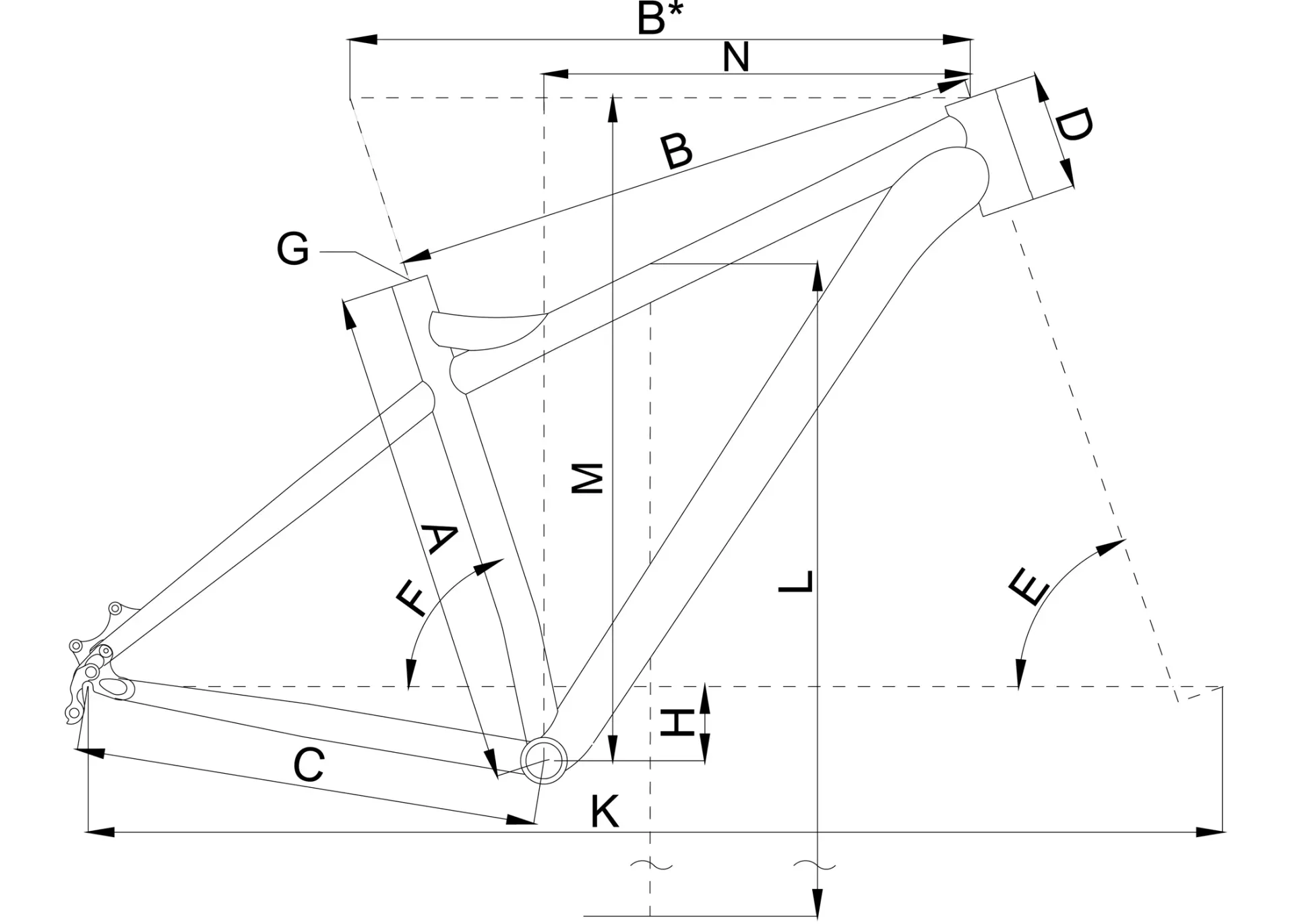

Geometry

XS7 S7 M9 L9 XL9
A bb center to top of seattube 360 400 430 470 510
B top tube parallel 567,5 562,7 582 579,2 593,4
B* top tube horizontal 451 586 605 610 620,1
C chainstay 445 445 455 455 455
D headtube length 110 110 110 110 110
E head angle 70 ° 70 ° 71 ° 71 ° 71 °
F seat angle 73 ° 73 ° 79 ° 79 ° 78,5 °
H bb offset 42 42 75 75 75
K wheelbase 1083 1086 1116 1119 1131
G seatpost diameter 34,9 34,9 34,9 34,9 34,9
