FastRider Team

FastRider Team


  • Strong and extra light carbon frame
  • Manitou M30 AIR HLO alloy suspension fork with hydraulic lock- out with remote lock
  • Hydraulic disc brakes with alloy levers
  • 1x12 speed reliable drive train
  • Index cassette, 11-50T

Description

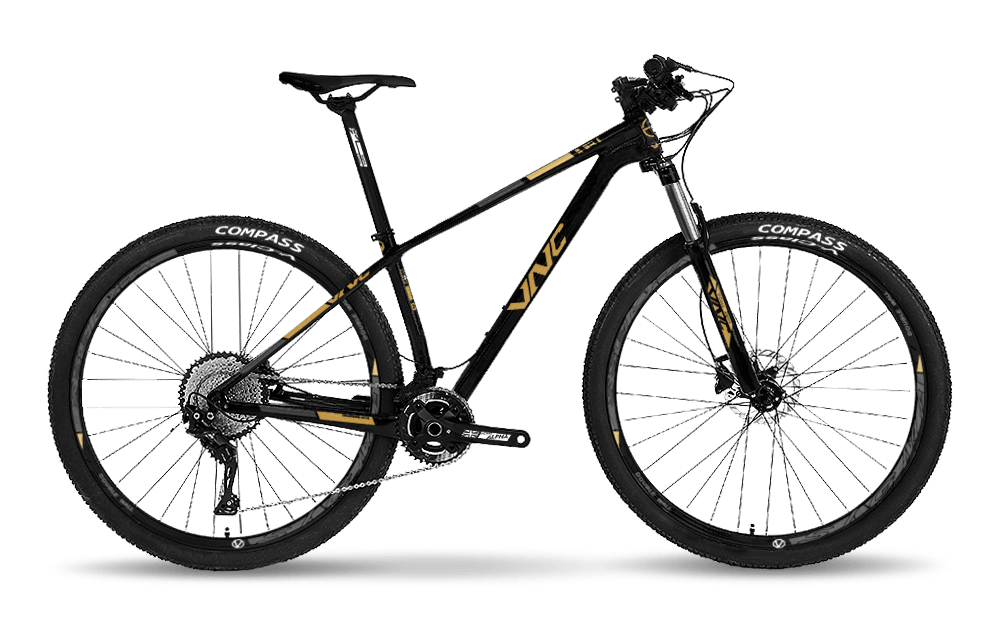

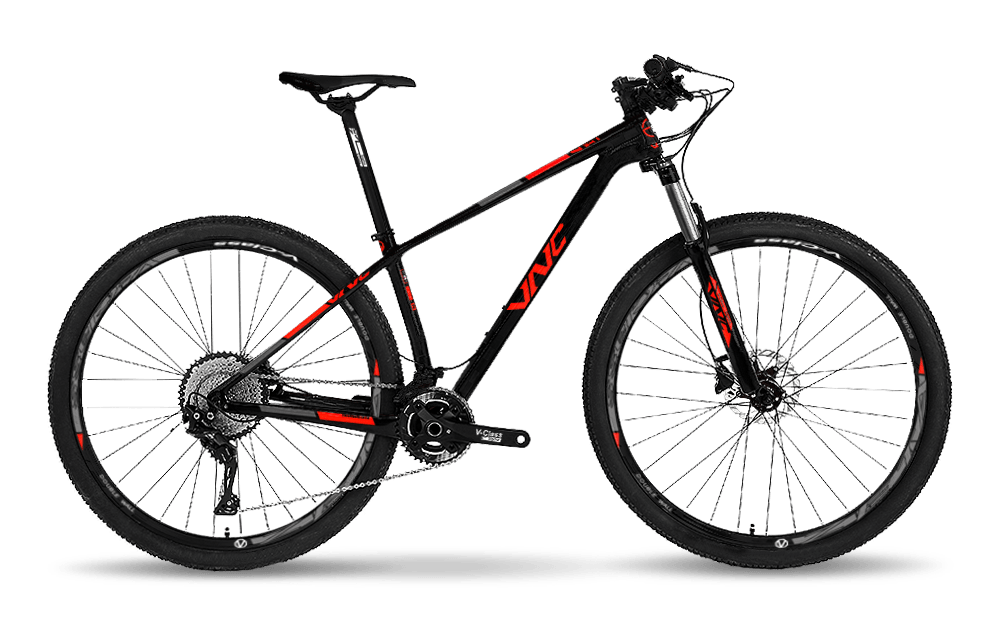

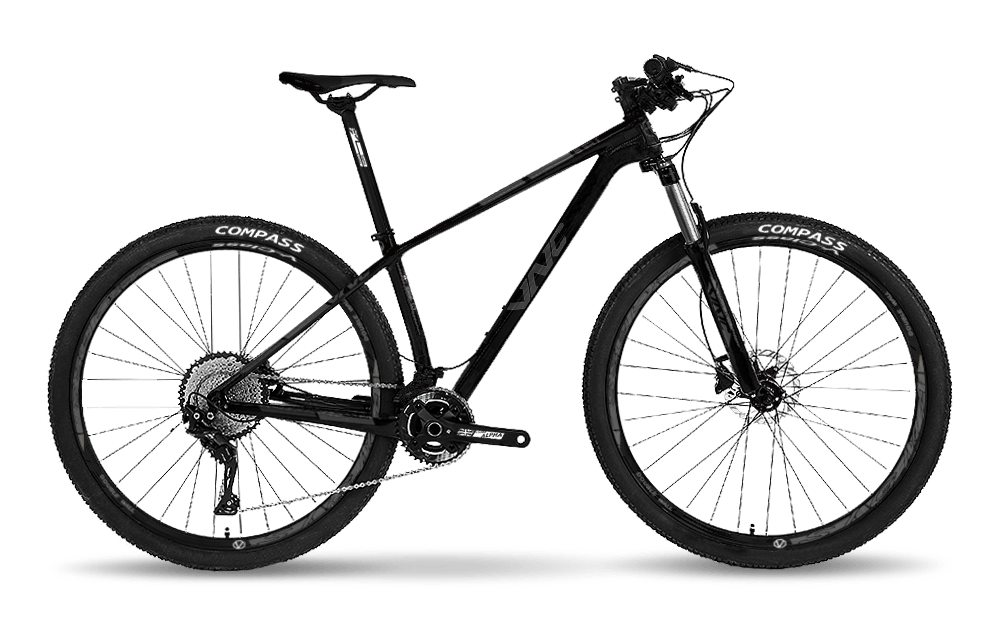

The VNC FastRider Team mountain bike is made on the basis of a strong and extra light carbon frame that is resistant to corrosion and moisture.


The central, upper profile tube has a slope and forms a low geometry with a narrow lumen triangle for ease of landing and jumping off the bike.


The alloy Manitou M30 air suspension fork with hydraulic lock-out with remote lock handles uneven, uneven road sections, especially in rough terrain.


Immediate stopping power is provided by reliable V-Class Sigma or (Tektro HD-M275) hydraulic disc brakes with aluminum handlebar grips, when compressed, the pads immediately grip the rotors of the front and rear wheels.


The dynamics of the bike is represented by a 1x12 speed transmission, equipped with proprietary Shimano Deore components, which gives ample range for riding in a variety of terrain. V-Class or Shimano (depends on spec of bike) shifters are installed around the circumference of the handlebars and smoothly shift the desired speeds.


The 12-speed 11-50T cassette delivers high performance and easy chain throwing.


Wheels in the size of 29'' inches perfectly accelerate, keep the roll and speed.


The seat post height adjustment allows the rider to find a comfortable position.


High-quality, lightweight components from the world's leading manufacturer are unpretentious in operation and have a long service life.

Specification

Frame MTB ExtraLite, carbon
Fork Manitou M30 AIR HLO, air, hydraulic lock-out, REAR HUB V-Class Alpha Pro, disk, bearings, BRAKE LEVERS V-Class Sigma, hydraulic disc brake, alloy / 120mm, alloy
Shifters S-Ride FD-M410, index, 1x12 speed / Shimano SL-M6100-R, index, 1x12 speed
Front derailleur N / A
Rear derailleur Shimano Deore RD-M6100-SGS, index, 12 speed
Cassette S-Ride CS-M500, cassette type, index, 11-50T
Crankset V-Class Alpha, 36T, alloy
Chain KMC X12
Bottom bracket Pressed B. B.
Brakes V-Class Sigma, hydraulic disc brake, rotor: 160/160 mm / Tektro HD-M275, hydraulic
Brake Levers V-Class Sigma, hydraulic disc brake, alloy / Tektro HD-M275, hydraulic disc brake, alloy
Hub (front) V-Class Alpha, disk, bearings, quick release, alloy
Hub (rear) V-Class Alpha, disk, bearings, quick release, alloy
Handlebar V-Class Sigma, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma, disc, double wall, alloy
Spokes Stainless Steel Black
Tires Compass MTB Pro, 29’’x2.25’’
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 12,2
Color Black / Grey / Red
Frame size S9 / M9 / L9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

S9 M9 L9
A bb center to top of seattube 380 430 480
B top tube parallel 567,5 582 586
B* top tube horizontal 576 605 610
C chainstay 450 450 450
D headtube length 110 110 110
E head angle 70 ° 71 ° 71 °
F seat angle 73 ° 79 ° 79 °
H bb offset 42 75 75
K wheelbase 1083 1116 1119
G seatpost diameter 34,9 34,9 34,9
