Rider A3 FMN

Rider A3 FMN

  • Strong and lightweight alloy feminine concept frame with lowered top center tube
  • Durable and lightweight V-Class Zeta Sigma HLO alloy suspension fork with hydraulic lockout
  • Mechanical Disc Brakes with Aluminum Levers
  • Shimano Tourney 7 speed rear derailleur and 3 speed front derailleur with Shimano shifters
  • Freewheel Shimano MF-TZ21 14-28T, 7 Speed
  • 26" / 27,5" wheels size

Description

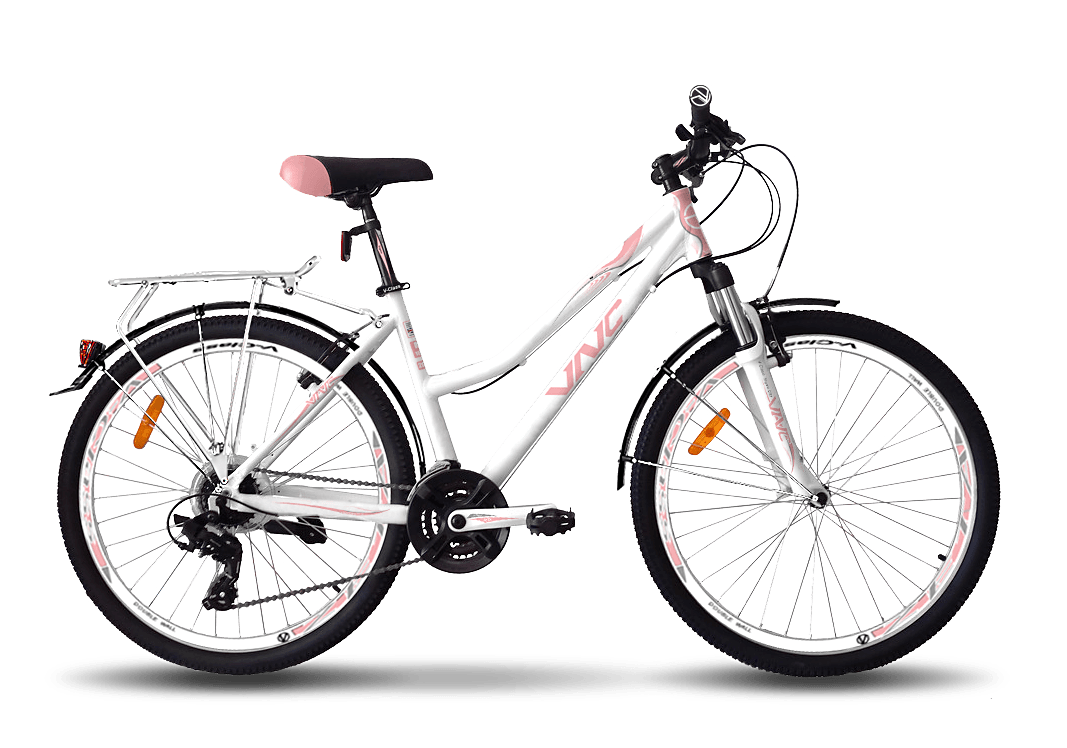

The dynamic VNC Rider A3 FMN mountain bike comes with a durable and lightweight aluminum frame that resists corrosion and moisture.


Smooth profile lines and a lowered top center tube create optimal geometry for easy pedaling, effortless landing and jumping off the bike without any risk of injury.


The lightweight V-Class Zeta City HLO suspension fork with hydraulic lockout is also made of aluminum, which paves the way for tackling rough terrain.


Logan mechanical disc brakes with aluminum handlebars allow full control of movement and respond to the slightest effort, gripping the wheel rotors with pads.


The dynamics of the bike is the responsibility of a 21-speed transmission (3x7) equipped with proprietary Shimano Tourney components, which provides the rider with a sufficient choice of gears for any road conditions. Shimano RevoShift handlebars provide precise shifting.


Wheels with a radius of 26'' and 27,5'' are optimal for driving in variable road conditions.


The seat tube height adjustment allows the rider to find the most comfortable position.


Specification

Frame VNC MTB ProLite FMN, alloy
Fork V-Class Zeta HLO, 100mm, alloy
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Shimano MF-TZ21, 14-28t
Crankset V-Class Zeta, 24T/34T/42T, alloy
Chain KMC C7
Bottom bracket Sealed cartridge, BSA
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers Logan, alloy
Hub (front) V-Class Sigma, disk, quick release. alloy
Hub (rear) V-Class Sigma, disk, quick release. alloy
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma, disc, double wall, alloy
Spokes Stainless Steel
Tires Compass MTB, 26"(27,5")x2.30"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,6
Color White / Purple / Black
Frame size XS6 / S7 / M7

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS6 S7 M7 L9 XL9
A bb center to top of seattube 360 410 450 470 510
B top tube parallel 537 562 584 579 593
B* top tube horizontal 541 586 610 605 620
C chainstay 424 435 435 455 455
D headtube length 110 110 110 110 110
E head angle 68,5 ° 70 ° 70 ° 71 ° 71 °
F seat angle 74,5 ° 73 ° 73 ° 73 ° 73 °
H bb offset 45 42 42 75 75
K wheelbase 1065 1083 1107 1116 1131
G seatpost diameter 30,4 30,4 30,4 30,4 30,4
