Rider A3

Rider A3

  • Strong and lightweight alloy frame with lowered top center tube
  • Durable and lightweight V-Class Zeta MLO alloy suspension fork with mechanical lock-out
  • Mechanical Disc Brakes with Aluminum Levers
  • Shimano Tourney 7 speed rear derailleur and 3 speed front derailleur with Shimano shifters
  • Freewheel Shimano MF-TZ21 14-28T, 7 Speed
  • 26" / 27,5" wheels size

Description

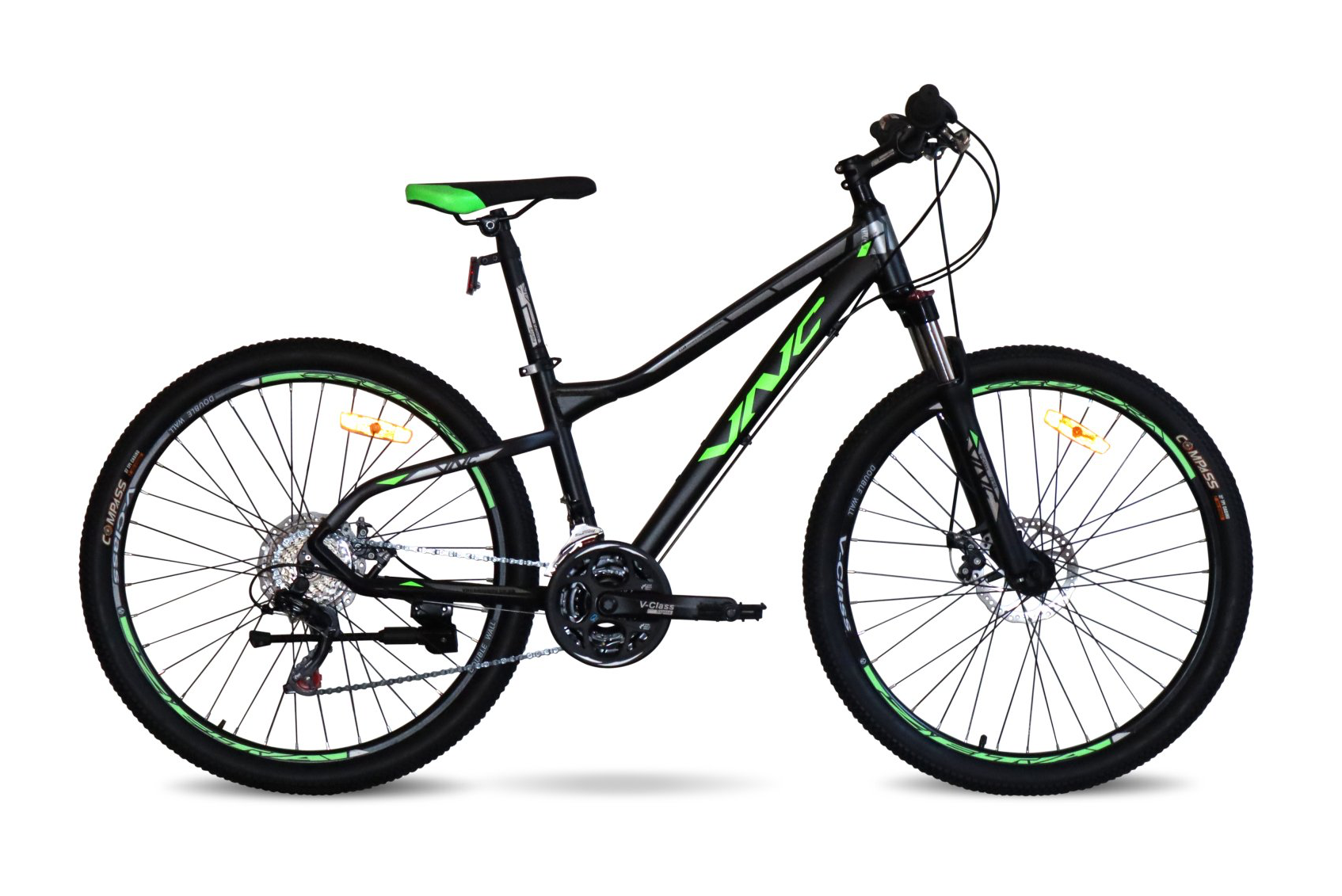

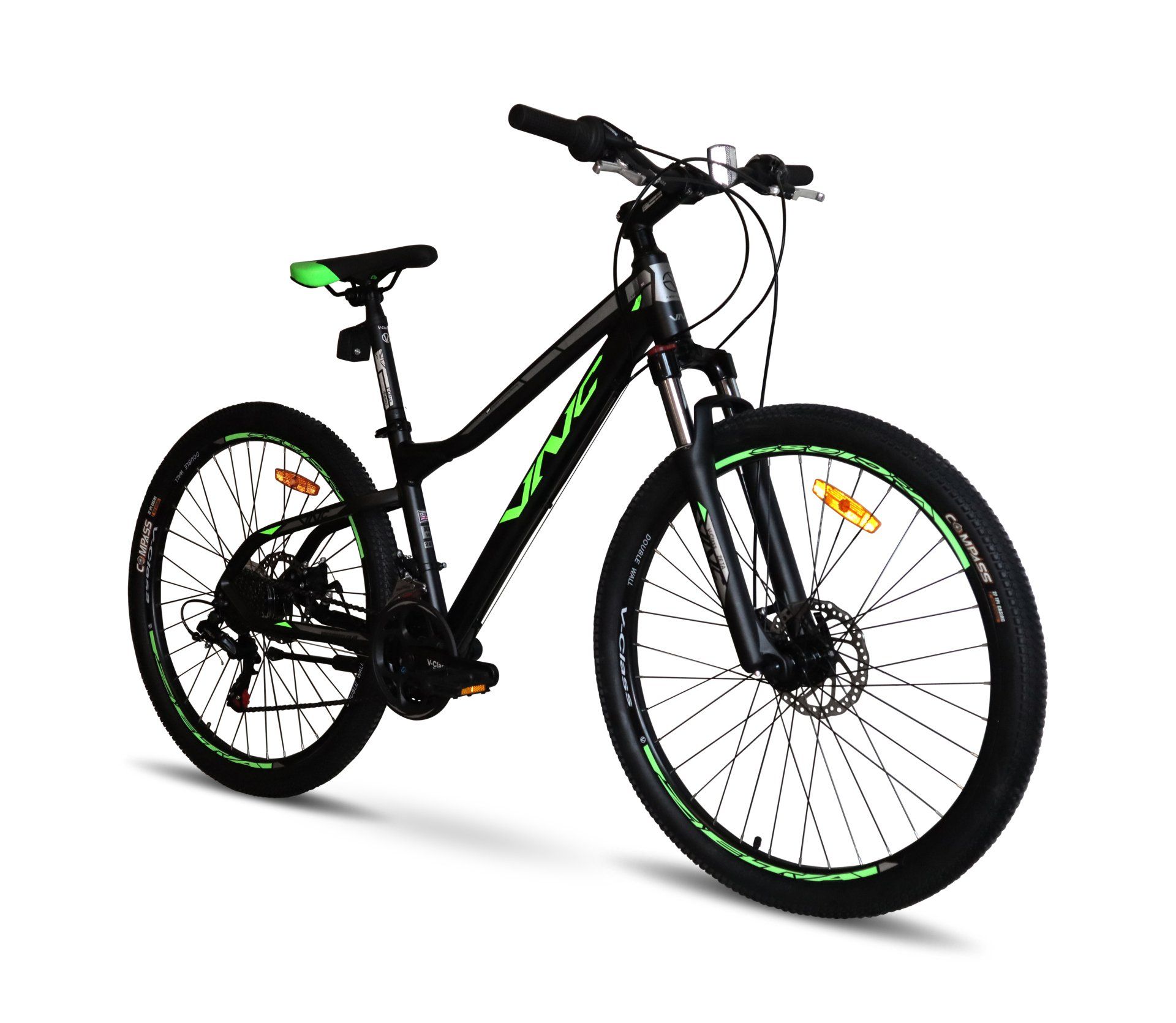

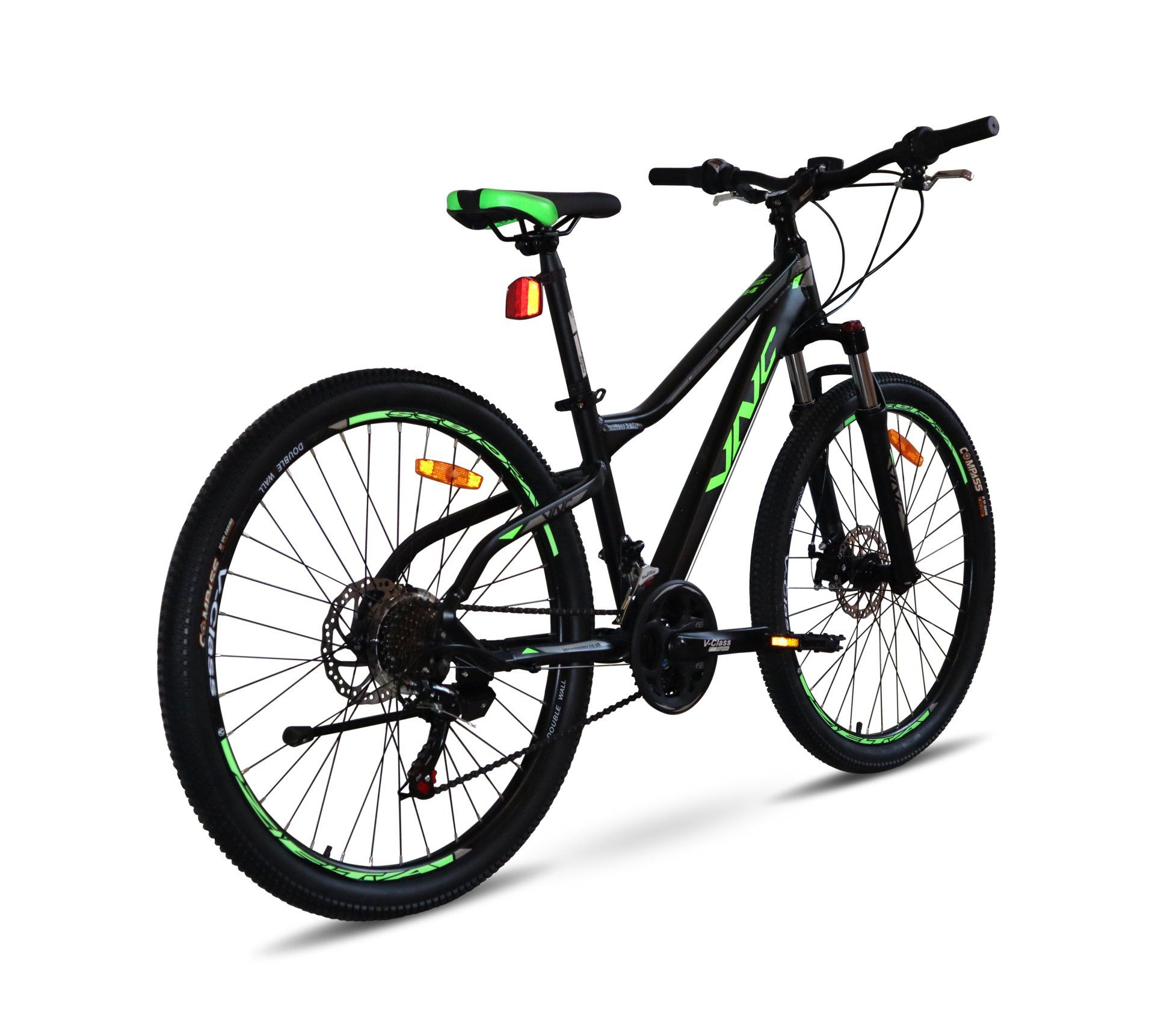

The VNC Rider A3 mountain bike is designed with a sporty aluminum frame, which is the optimal solution in terms of strength, lightness, corrosion and moisture resistance. The top tube of the profile is sloped, creating a low geometry and a narrow clearance triangle for easy pedaling, landing and jumping off the bike.


The V-Class Zeta City HLO aluminum suspension fork with hydraulic lockout on the handlebars to adjust the compression ratio has the same strength and lightness.


Reliable Logan disc mechanical brakes with aluminum handlebar grips allow you to control any speed conditions.


The 21-speed (3x7) drivetrain runs on Shimano Tourney proprietary hardware and offers ample gear range for a wide variety of road conditions. Shimano RevoShift handlebars provide precise and smooth shifting.


The 26'' and 27,5'' wheels pick up speed quickly and are easy to roll and brake.


The seat tube height adjustment allows you to find a comfortable position for a long ride.


Lightweight bike components from a leading manufacturer are unpretentious and long-lasting.

Specification

Frame VNC MTB ProLite, alloy
Fork V-Class Zeta MLO, 100mm, alloy
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Shimano MF-TZ21, 14-28t
Crankset V-Class Zeta, 24T/34T/42T, alloy
Chain KMC C7
Bottom bracket Sealed cartridge, BSA
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers Logan, alloy
Hub (front) V-Class Sigma, disk, quick release. alloy
Hub (rear) V-Class Sigma, disk, quick release. alloy
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma, disc, double wall, alloy
Spokes Stainless Steel
Tires Compass MTB, 26"(27,5")x2.30"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,6
Color Black / Grey / Green
Frame size XS6 / S7 / M7

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS6 S7 M7 L9 XL9
A bb center to top of seattube 360 410 450 470 510
B top tube parallel 537 562 584 579 593
B* top tube horizontal 541 586 610 605 620
C chainstay 424 435 435 455 455
D headtube length 110 110 110 110 110
E head angle 68,5 ° 70 ° 70 ° 71 ° 71 °
F seat angle 74,5 ° 73 ° 73 ° 73 ° 73 °
H bb offset 45 42 42 75 75
K wheelbase 1065 1083 1107 1116 1131
G seatpost diameter 30,4 30,4 30,4 30,4 30,4
