Viper A2 Lime
- Strong and lightweight alloy frame with lowered top center tube
- Durable are reliable V-Class Delta steel suspension fork
- Shimano Tourney 7 speed rear derailleur and 3 speed front derailleur with Shimano shifters
- Freewheel Shimano MF-TZ21 14-28T, 7 Speed
- 24" wheels size
Description
The VNC Viper A2 bike is designed for teenagers with a light and strong Y-shaped frame made of corrosion-resistant aluminum. The shape of the frame profile has a low geometry, convenient for landing and free jumping from the bike, which reduces the risk of hooks and injuries. Smooth, streamlined lines have a reliable margin of safety, evenly distributing the load.
Roughness of the road and difficult sections of the road are handled by a steel shock-absorbing fork V-Class Delta.
Powerful stopping force is provided by Logan v-brakes clamping wheel rotors by special blocks. The disc mechanics are activated instantly when the brake levers on the handlebars of the bicycle are compressed.
The transmission of the bike has 21 speeds in a combination of 3x7, running on branded components Shimano Tourney, which allows you to overcome a variety of road conditions and obstacles. Shimano RevoShift shifters mounted on the handlebars are responsible for accurate gear shifting.
24'' inch wheels are optimal in acceleration, rolling and speed.
Saddle height adjustment helps to find a comfortable, level position for the cyclist.
High-quality, lightweight components are productive and do not require serious adjustments.
Specification
| Frame | VNC MTB Y-Type Junior, alloy |
| Fork | V-Class Delta, 80mm, steel |
| Shifters | Shimano Tourney SL-RV200, 3x7 speed |
| Front derailleur | Shimano Tourney FD-TZ500, 3 speed |
| Rear derailleur | Shimano Tourney RD-TZ500-GS, 7 speed |
| Freewheel | Shimano MF-TZ21, 14-28t |
| Crankset | V-Class Zeta, 24T/34T/42T, alloy |
| Chain | KMC C7 |
| Bottom bracket | Sealed cartridge, BSA |
| Brakes | Logan, v-brake |
| Brake Levers | Logan, alloy |
| Hub (front) | V-Class Delta, quick release, steel |
| Hub (rear) | V-Class Delta, quick release, steel |
| Handlebars | V-Class Delta, steel |
| Stem | V-Class Sigma, alloy |
| Seatpost | V-Class Sigma, alloy |
| Saddle | V-Class MontRace JR |
| Headset | VNC M2, A-Headset, semi-integrated |
| Rims | V-Class Sigma, disc, double wall, alloy |
| Spokes | Stainless Steel |
| Tires | Compass MTB, 24"x1.95" |
| Pedals | V-Class FP-803, ball bearings |
| Grips | V-Class Revo MTB |
| Approx weights in kg | 12,1 |
| Color | Lime / Black |
| Frame size | XXS4 |
* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

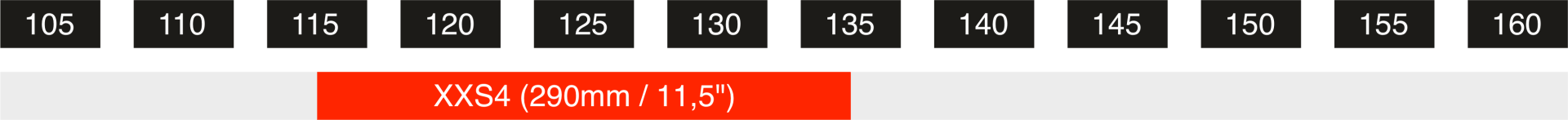

Size chart

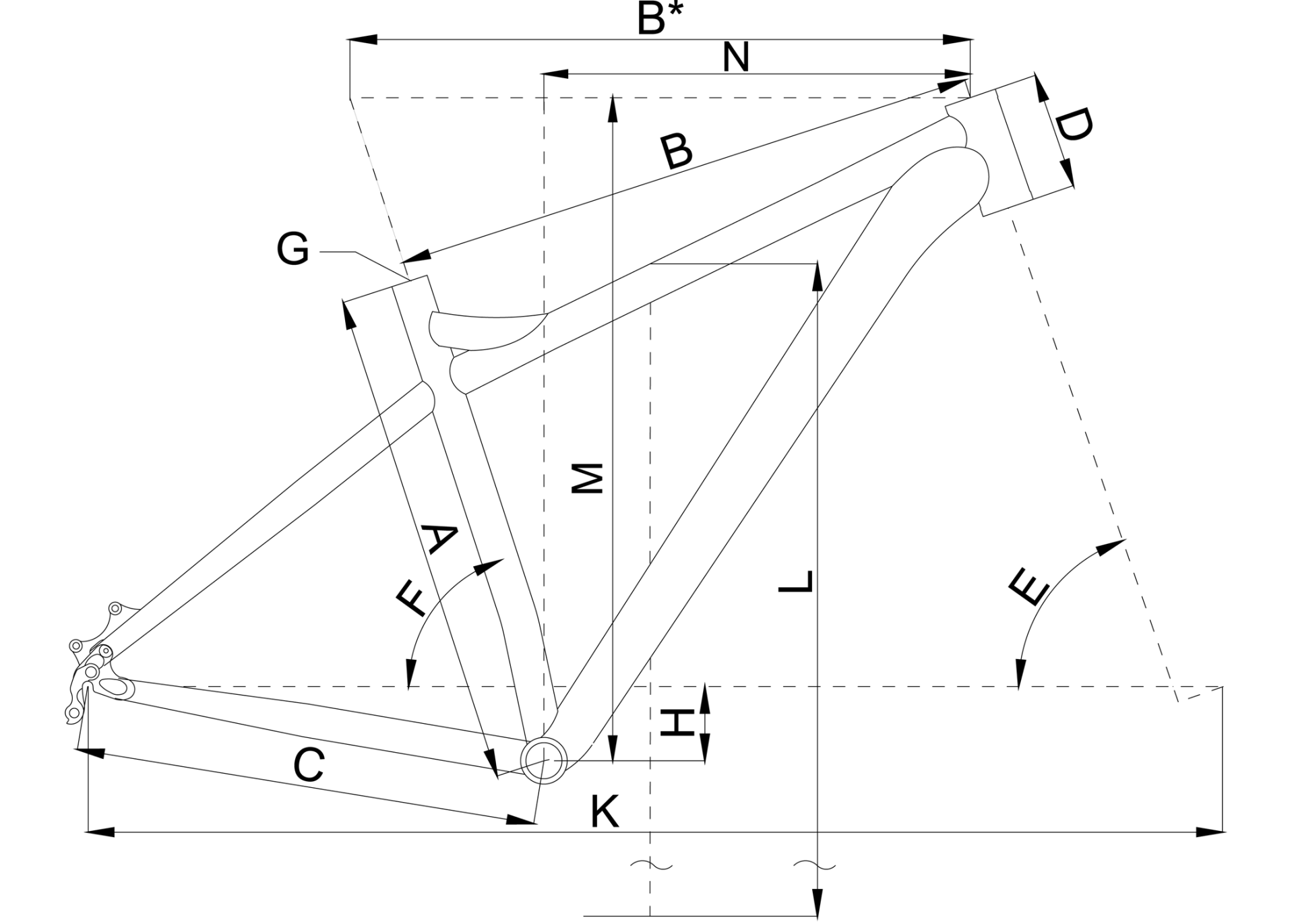

Geometry
| XXS4 | ||
|---|---|---|
| A | bb center to top of seattube | 290 |
| B | top tube parallel | 480 |
| B* | top tube horizontal | 492 |
| C | chainstay | 415 |
| D | headtube length | 102 |
| E | head angle | 71 ° |
| F | seat angle | 73 ° |
| H | bb offset | 25 |
| K | wheelbase | 994 |
| G | seatpost diameter | 31,8 |
