MontRider A2

MontRider A2

  • Strong and lightweight alloy frame
  • V-Class Delta steel suspension fork
  • V-Class Zeta mechanical disc brakes with alloy levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28T

Description

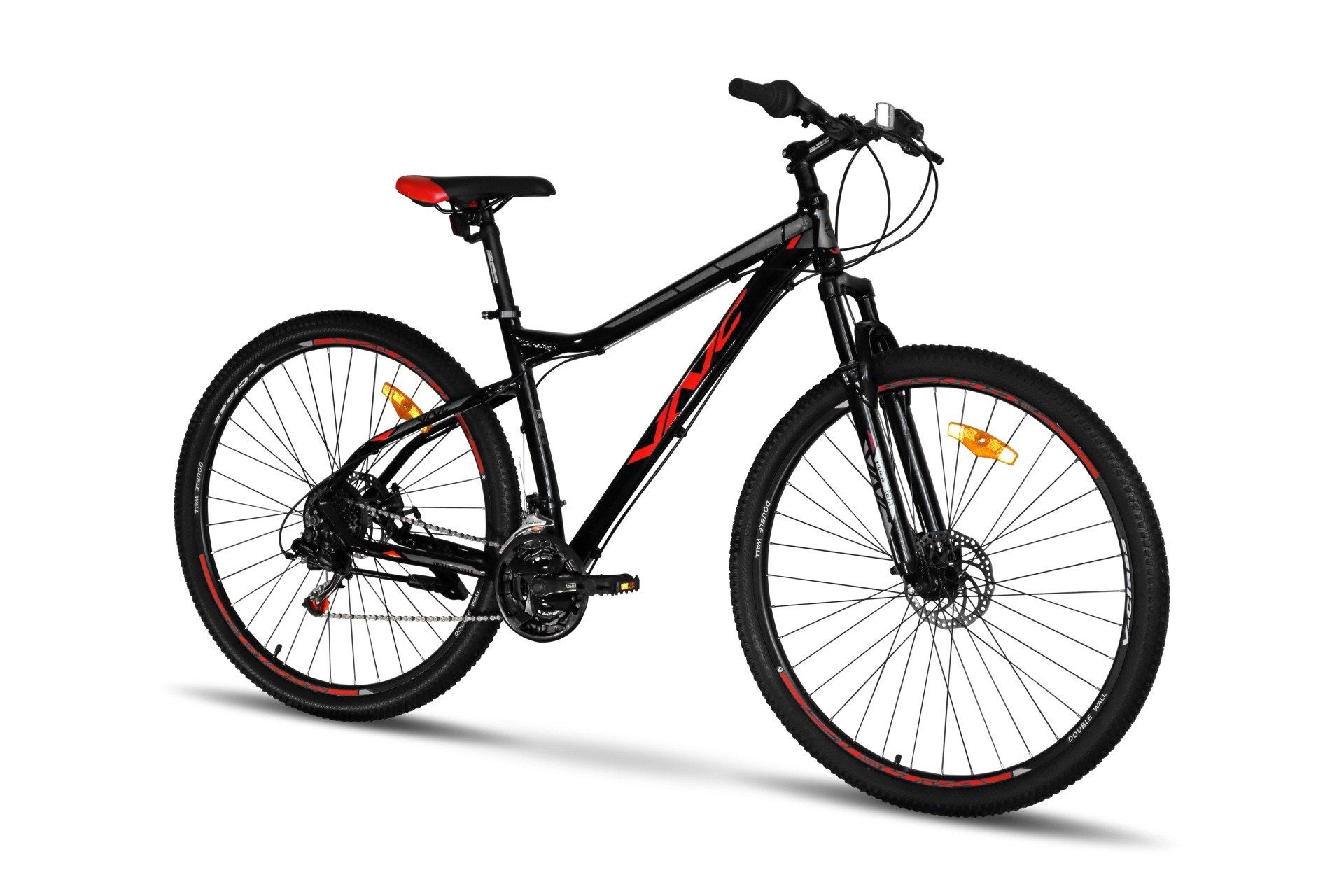

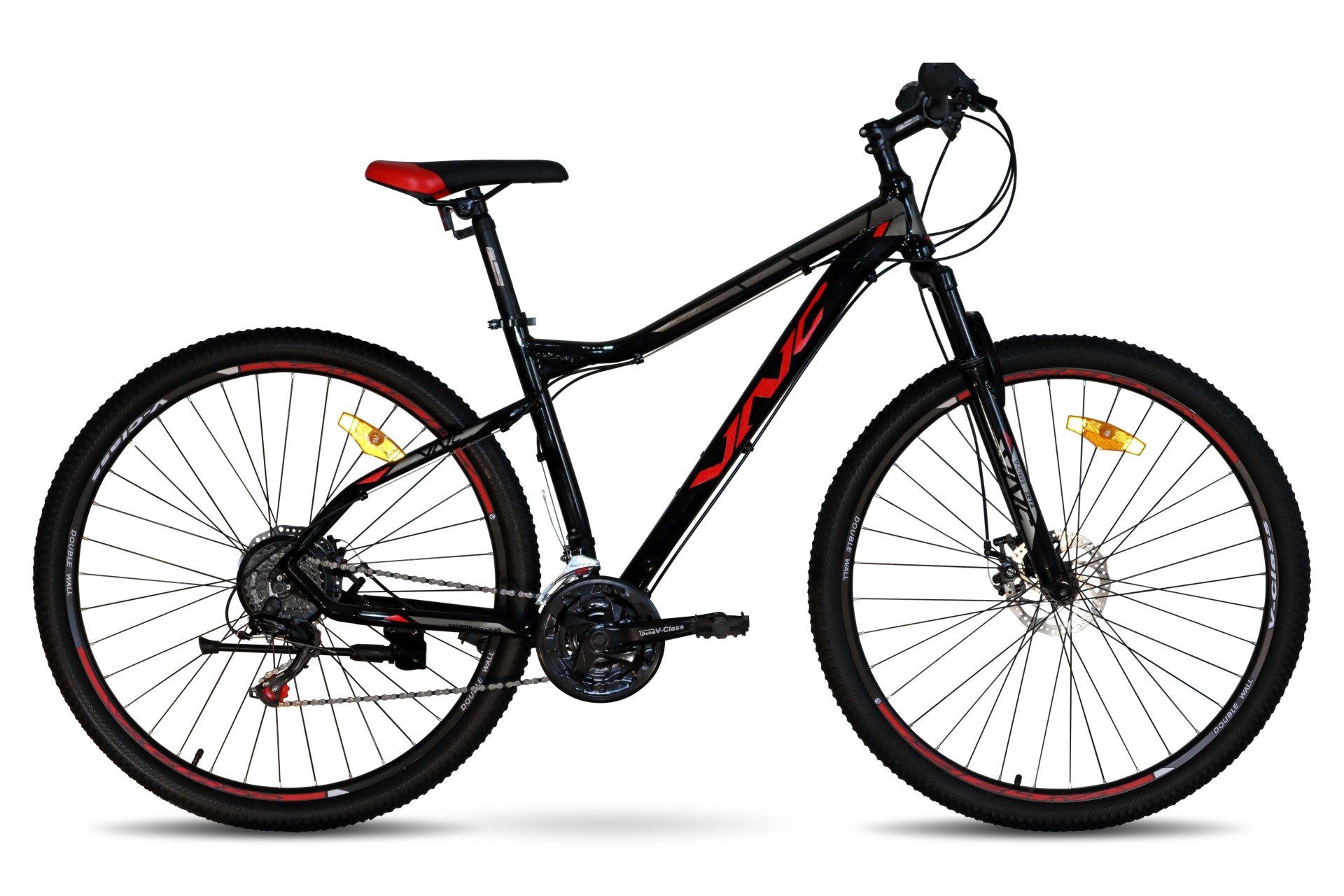

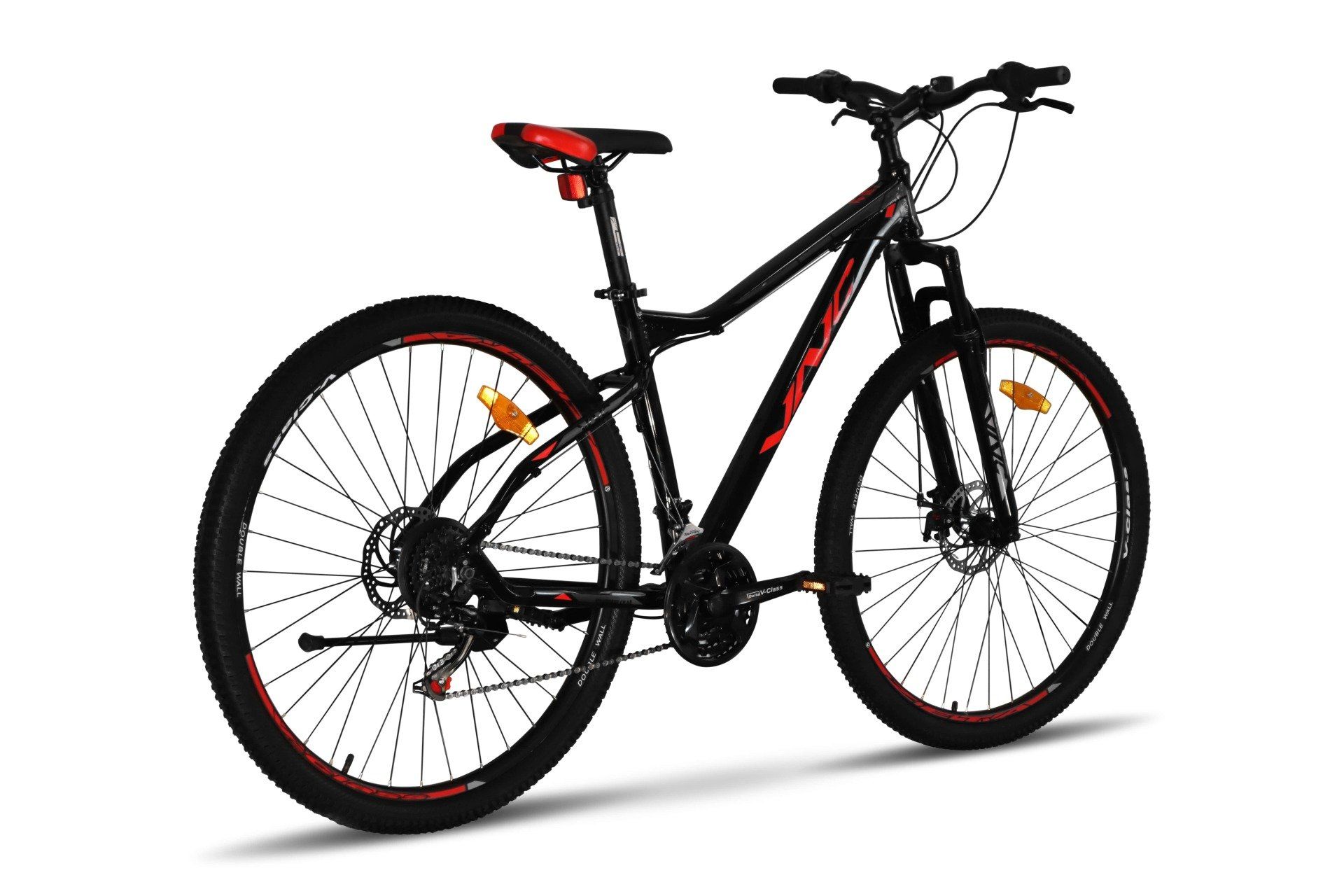

The VNC MontRider A2 mountain bike is made on the basis of a light and durable aluminum frame that is resistant to corrosion and moisture. The central, upper profile tube has a slope and forms a low geometry with a narrow lumen triangle for ease of landing and jumping off the bike.


The steel V-Class Delta suspension fork handles uneven, uneven road sections, especially in rough terrain.


Immediate stopping power is provided by reliable V-Class Seta mechanical disc brakes with aluminum handlebar grips, when compressed, the pads immediately grip the rotors of the front and rear wheels.


The dynamics of the bike is represented by a 21-speed transmission (3x7), equipped with proprietary Shimano Tourney components, which gives ample range for riding in a variety of terrain. Shimano RevoShift shifters are installed around the circumference of the handlebars and smoothly shift the desired speeds.


Wheels in the size of 27,5'' and 29'' inches perfectly accelerate, keep the roll and speed.


The seat post height adjustment allows the rider to find a comfortable position.


High-quality, lightweight components from the world's leading manufacturer are unpretentious in operation and have a long service life.

Specification

Frame MTB ProLite, alloy
Fork V-Class Delta, coil, 80mm, steel
Shifters Shimano Tourney RV200, index, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, index, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, index, 7 speed
Freewheel Tri Diamond FW-207, index, 13-28T
Crankset V-Class Delta Pro, 24T/34T/42T, steel
Chain JX C50
Bottom bracket Sealed Cartridge
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Zeta, disk, quick release, alloy
Hub (rear) V-Class Zeta, disk, quick release, alloy
Handlebar V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Steel Black
Tires MTB Pro, 27,5’’(29’’)x2.35’’
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 15,2 (kick stand & mudguards not included)
Color Black / Red / Grey
Frame size XS7 / S7 / M9 / L9 / XL9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS7 S7 M9 L9 XL9
A bb center to top of seattube 360 400 430 470 510
B top tube parallel 567,5 562,7 582 579,2 593,4
B* top tube horizontal 451 586 605 610 620,1
C chainstay 445 445 455 455 455
D headtube length 110 110 110 110 110
E head angle 70 ° 70 ° 71 ° 71 ° 71 °
F seat angle 73 ° 73 ° 79 ° 79 ° 78,5 °
H bb offset 42 42 75 75 75
K wheelbase 1083 1086 1116 1119 1131
G seatpost diameter 34,9 34,9 34,9 34,9 34,9
