Rider 11

Rider A11

  • Strong and lightweight alloy frame with lowered top center tube
  • V-Class Ypsilon HLO-RL Air aluminum suspension forks with hydraulic lockout with switch on handlebar
  • Kamros Hydraulic Disc Brakes with alloy levers
  • Shimano Deore 12 speed rear derailleur with Shimano Deore shifter
  • Cassette Skilful CS-G800 50-11T 12 Speed
  • 27,5" / 29" wheel size

Description

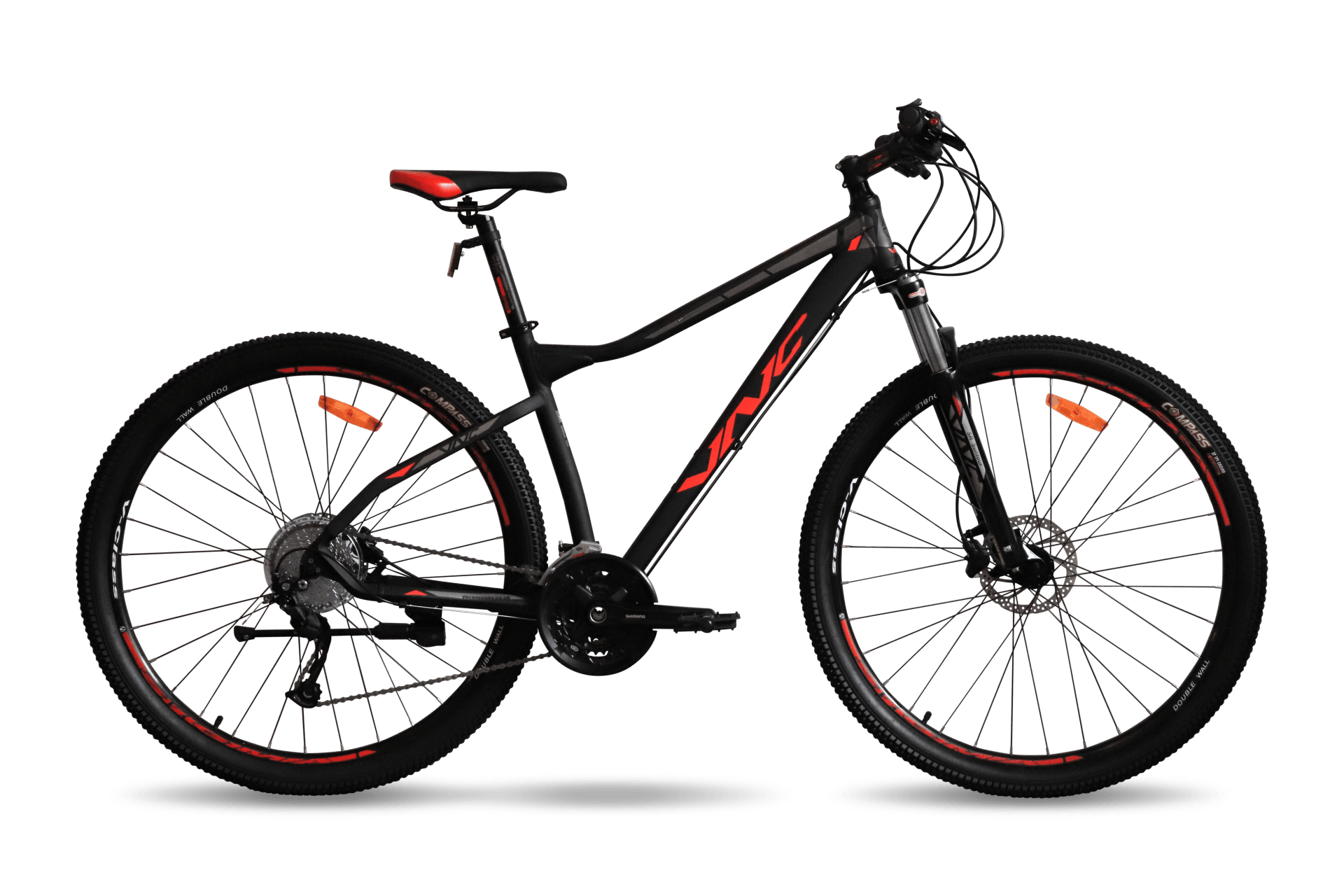

The VNC Rider A11 mountain bike is designed with a sporty aluminum frame that offers strength, lightness, corrosion and moisture resistance.


The upper, center tube of the frame is gently lowered and forms the optimal geometry for quick landing, easy pedaling and jumping off the bike.


A V-Class Ypsilon HLO-RL Air aluminum suspension fork with hydraulic lockout on the handlebars controls the compression level and allows the rider to master any road conditions.


Kamros's state-of-the-art hydraulic disc brakes provide powerful stopping power and respond to the slightest squeeze from the aluminum handlebar grips to which the hose is attached.


The innovative 12-speed (1x12) transmission operates at a high level thanks to proprietary components. The 12-speed Shimano Deore rear derailleur is controlled by a Shimano Deore monoblock shifter.


12-speed cassette Skilful CS-G800-12 11-50T technologically rich mechanism with high build quality and long service life.


The classic 27,5'' and 29'' wheel radius is great for fast acceleration, confident roll-off and high-speed modes.


The adjustable seat tube height will help the rider find the optimal fit for his height and easily overcome long distances.

Specification

Frame VNC MTB ProLite, alloy
Fork V-Class Ypsilon AIR RL-HLO, hydraulic lockout with handlebar switch, 120mm, alloy
Shifters Shimano Deore SL-M6100-R, 1x12 speed
Front derailleur -
Rear derailleur Shimano Deore RD-M6100-SGS, 12 speed
Cassette Skilful CS-G800, 11-50t
Crankset Prowheel CLAW, 38T, alloy
Chain KMC X12
Bottom bracket Sealed cartridge, BSA
Brakes Kamros, hydraulic disc brake, rotor: 160/160 mm
Brake Levers Kamros, hydraulic, alloy
Hub (front) Quando KT-68F, disk, quick release, alloy
Hub (rear) Quando KT-69R, disk, quick release, alloy
Handlebars V-Class Sigma, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma, disc, double wall, alloy
Spokes Stainless Steel Black
Tires Compass MTB, 27,5"(29")x2.30"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,5
Color Black / Dark Grey
Frame size S7 / M7 / L9 / XL9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS6 S7 M7 L9 XL9
A bb center to top of seattube 360 410 450 470 510
B top tube parallel 537 562 584 579 593
B* top tube horizontal 541 586 610 605 620
C chainstay 424 435 435 455 455
D headtube length 110 110 110 110 110
E head angle 68,5 ° 70 ° 70 ° 71 ° 71 °
F seat angle 74,5 ° 73 ° 73 ° 73 ° 73 °
H bb offset 45 42 42 75 75
K wheelbase 1065 1083 1107 1116 1131
G seatpost diameter 30,4 30,4 30,4 30,4 30,4
