PrimeRacer A5 (UA)

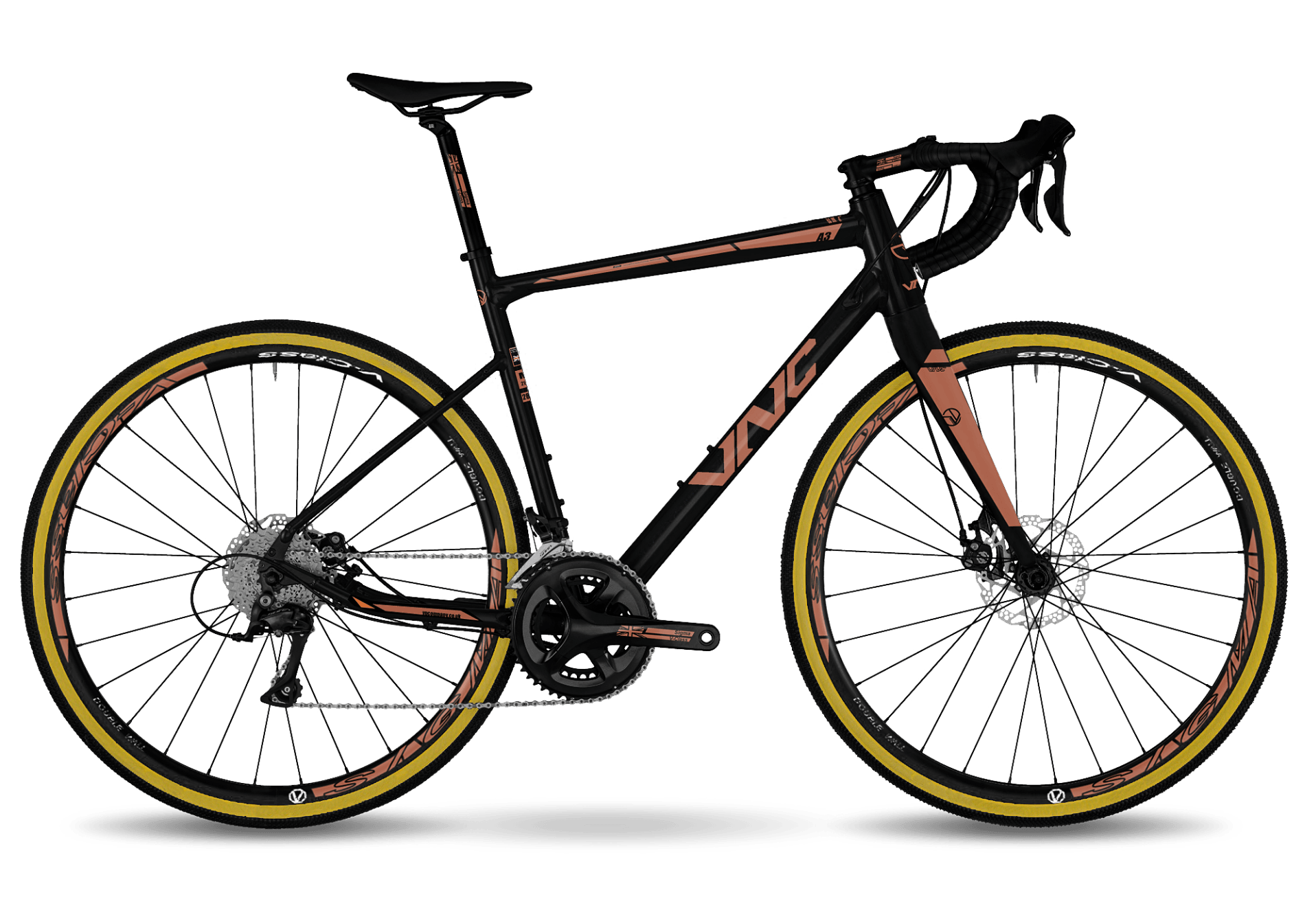

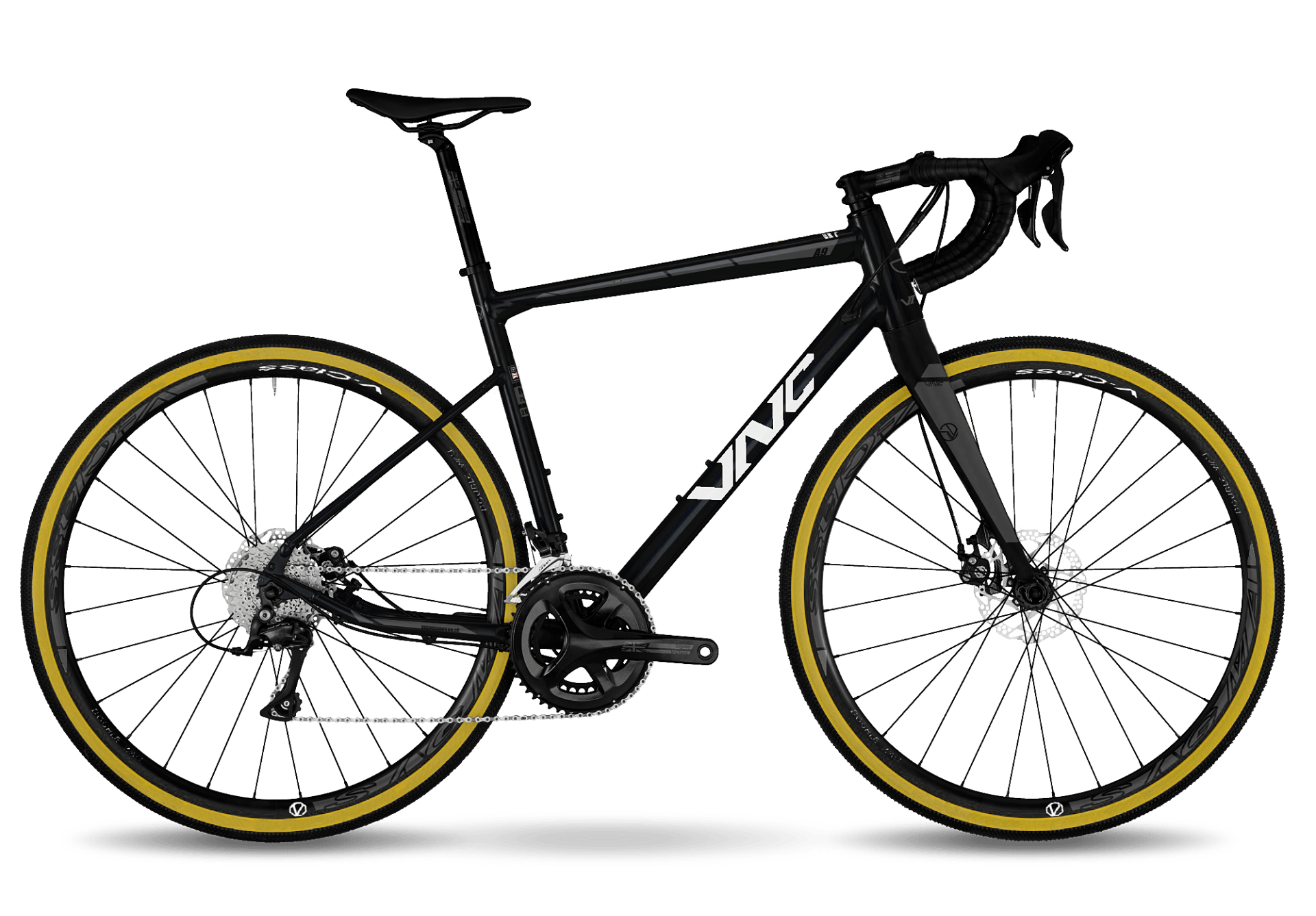

PrimeRacer A5

  • Lightweight and durable aluminum racing frame
  • V-Class ProRace alloy rigid fork
  • Logan mechanical disc brakes
  • MicroShift R8 9-speed rear derailleur with SB-R490 Dual Control shifters
  • Cassette Skilful CS-M320 11-25T 9 Speed
  • 700C wheel size

Description

The VNC PrimeRacer A5 bike is designed specifically for off-road riding with a lightweight, durable aluminum gravel frame that resists moisture and corrosion. The geometry of the profile is balanced for tricky road sections with heavy pipes and a wide lumen triangle.


The rigid, rigid aluminum V-Class ProRace fork is positioned for more efficient traversing of unpaved road surfaces, as without rolling it saves the rider as much energy as possible when pedaling hard.


The Logan mechanical disc brake system allows full control of movement in steep descents and dangerous turns, which clamp the wheel rotors with special pads.


The bike's drivetrain provides 9 speeds (1x9) and runs on proprietary components. The 9-speed Microshift RD-R32S rear derailleur is controlled by the Microshift SB-R490 Dual Control monoblock.


The Skilful CS-M320 11-25T 9-speed cassette has a high performance and a long service life.


Compass Saturn Ring SkinWall tires with a radius of 700Сх28С are specially designed for difficult roads.


The height-adjustable seat tube allows you to choose the optimal fit for the rider, which is important when driving for a long time on rough terrain.


Lightweight and efficient bike components are stable in operation and have a long service life.

Specification

Frame VNC Gravel ProLite, alloy
Fork V-Class Rigid ProRace, alloy
Shifters MicroShift R8 SB-R490 Dual Control, 1x9 speed
Front derailleur -
Rear derailleur Microshift R8 RD-R32S, 9 speed
Cassette Skilful CS-M320, 11-25t
Crankset V-Class Ypsilon Race, 38T, alloy
Chain KMC Z99
Bottom bracket Sealed Cartridge
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers MicroShift SB-R490, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Sigma Race, alloy
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset VNC M2, A-Headset, semi-integrated
Rims V-Class Sigma 700C, disc, double wall, alloy
Spokes Stainless Steel Black
Tires Compass Sport, 700Cx28C
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro Race
Approx weights in kg 12,1
Color Black / Grey / White
Frame size 52cm / 57cm

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

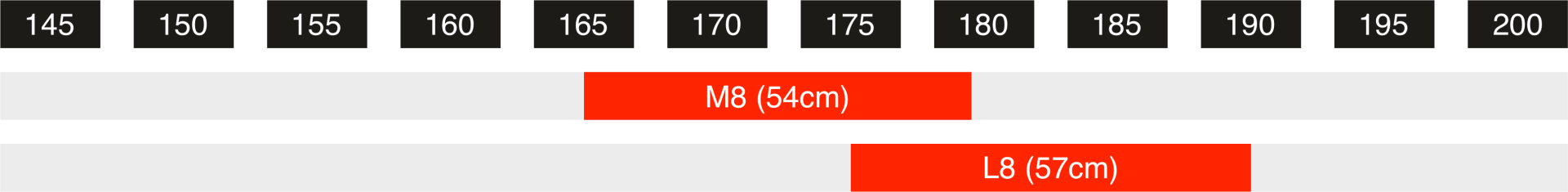

Size chart

Geometry

L8
A bb center to top of seattube 548
B top tube parallel 547
B* top tube horizontal 564
C chainstay 420
D headtube length 180
E head angle 71,5 °
F seat angle 63,9 °
H bb offset 71
K wheelbase 1024
G seatpost diameter 31,8
