ExtraWay EQ

ExtraWay EQ

  • Foldable high-tech aluminum frame with foldable bike components such as handlebar stem and plastic pedals
  • Logan hydraulic disc brakes with alloy brake levers
  • Shimano Nexus Rear 3-Speed disk internal hub with Shimano Shifters
  • Front aluminum V-Class Dynamo Hub 6V 3.0W with connected front and rear flash light
  • Pre-installed durable steel rear rack
  • 24" wheels size

Description

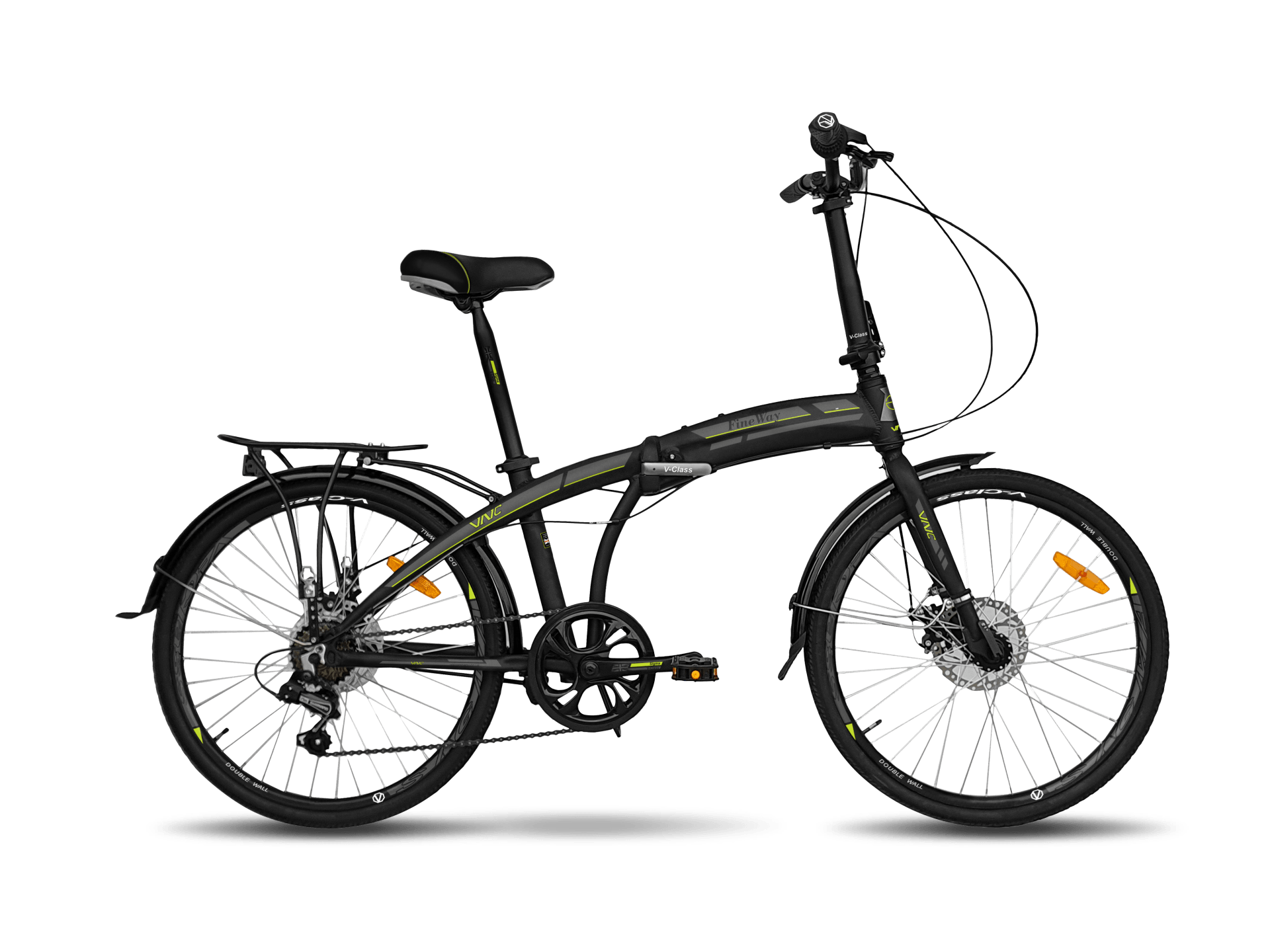

The VNC ExtraWay EQ bike is engineered with an aluminum, high-tech folding frame that is superior in balance of strength, lightness and corrosion resistance. The center tube has a smooth line, creating an optimal geometry for easy pedaling, free landing and jumping off the bike without any risk of injury.


Logan's high-quality hydraulic brakes are used in the top class of bicycles, have powerful stopping power and allow full control of movement in any speed mode. The brake steering levers respond to the slightest amount of force by means of a connected brake line that communicates with the pads that grip the wheel rotors.


The seven-speed transmission runs on a monolithic, internal Shimano Nexus hub and allows gear selection not only in motion, but also at rest with the Shimano RevoShift steering shifter.


The bike is equipped with a V-Class Dynamo 6V 3.0W front hub that generates electricity to power the headlight and rear flasher for safe travel in the dark.


The 24'' wheels are an advantage for folding bicycles due to the ability to develop high speeds, keep a long roll and easily overcome difficult road surfaces.


The constructive seat tube height adjustment helps you find the most comfortable fit, and the folding frame, handlebar stem and plastic pedals quickly give the bike a compact shape.

Specification

Frame VNC City Folding ProLite, alloy
Fork V-Class Rigid City, alloy
Shifters Shimano Shimano Nexus C3000-7, 1x7 speed
Front derailleur -
Rear derailleur Shimano Nexus SG-C3001-7D, 7 speed
Cassette V-Class City, 16t
Crankset V-Class Sigma, 52T, alloy
Chain KMC Z410
Bottom bracket Sealed Cartridge
Brakes Logan, hydraulic disc brake, rotor: 160/160 mm
Brake Levers Logan, hydraulic, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) Shimano Nexus SG-C3001-7D, internal 7-speed gear hub, disk, alloy
Handlebar V-Class Sigma, alloy
Stem V-Class Sigma Folding, regulated, 230mm, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class V-Class CityLine
Headset VNC M3, F-Headset, semi-integrated
Rims V-Class Sigma, disk, double wall, alloy
Spokes Stainless Steel Black
Tires Compass City, 24"x1.5"
Pedals V-Class Folding, ball bearings
Grips V-Class City
Carrier V-Class City, steel
Mudguards V-Class City, plastic
Approx weights in kg 14,6
Color Black / Grey / Gold
Frame size M4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

S2 M4 M6
A bb center to top of seattube 330 380 -
B top tube parallel - - -
B* top tube horizontal - - -
C chainstay 389 440 -
D headtube length 110 110 -
E head angle 73 ° 73 ° -
F seat angle - - -
H bb offset 20 20 -
K wheelbase 989 1069 -
G seatpost diameter 40,8 40,8 -
